Serie CKD
E4

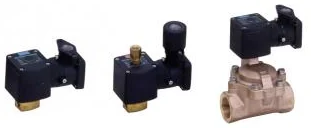

d2G4 explosion-proof 2, 3-port solenoid valve (explosion-proof general purpose valve)Explosion-proof solenoid valve compatible with various fluids. Compliant with pressure and explosion proof structure d2G4 and can be used in explosion-proof areas. · In addition to the traditional Japanese Certification (TIIS), Chinese GB Standard Certification (NEPSI)and Chinese Compulsory Product Certification System (CCC) are supported.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Explosion Proof]
- Explosion-proof performance d2G4,d2G2, pressure-proof explosion-proof structure: explosion grade 2, ignition degree G4,G2
- Japanese Certification Pass Number
- T64349
- T64361
- T64346
Variantes de la serie
| Model No. | Product name | Working pressure (MPa) | Bore size | Remarks |
|---|---|---|---|---|
| AB41E4 | 2-port direct acting/NC | 0 to 5 | Rc1/4, Rc3/8 | |
| AB42E4 | 2-port direct acting/NO | 0 to 2 | Rc1/4, Rc3/8 | |
| AG41E4 | 3-port direct acting/universal | 0 to 1 | Rc1/4, Rc3/8 | |
| AG43E4 | 3-port direct acting/NC pressurization | 0 to 0.7 | Rc1/4, Rc3/8 | |
| AG44E4 | 3-port direct acting/NO pressurization | 0 to 1.5 | Rc1/4, Rc3/8 | |
| AP11E4 | 2-port pilot operated piston drive/NC | 0.05 to 1.2 | Rc1/2, Rc3/4, Rc1 | |
| AP12E4 | 2-port pilot operated piston drive/NO | 0.05 to 0.5 | Rc1/2, Rc3/4, Rc1 | |
| AP21E4 | 2-port pilot operated piston drive/NC | 0.05 to 1.2 | Rc1 1/4, Rc1 1/2, Rc2, 32 flange, 40 flange, 50 flange | |
| AP22E4 | 2-port pilot operated piston drive/NO | 0.05 to 0.5 | Rc1 1/4, Rc1 1/2, Rc2, 32 flange, 40 flange, 50 flange | |
| AD11E4 | 2-port pilot operated diaphragm drive/NC | 0.02 to 1 | Rc1/2, Rc3/4, Rc1 | |
| AD12E4 | 2-port pilot operated diaphragm drive/NO | 0.02 to 0.5 | Rc1/2, Rc3/4, Rc1 | |
| AＤ21E4 | 2-port pilot operated diaphragm drive/NC | 0.02 to 0.7 | Rc1 1/4, Rc1 1/2, Rc2, 32 flange, 40 flange, 50 flange | |
| AＤ22E4 | 2-port pilot operated diaphragm drive/NO | 0.02 to 0.5 | Rc1 1/4, Rc1 1/2, Rc2, 32 flange, 40 flange, 50 flange | |
| ADK11E4 | 2-port pilot kick diaphragm drive/NC | 0 to 1 | Rc1/2, Rc3/4, Rc1 | |
| ADK12E4 | 2-port pilot kick diaphragm drive/NO | 0 to 0.6 | Rc1/2, Rc3/4, Rc1 |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- E4
- Línea
- Explosion-proof 2, 3-port solenoid valves
- Categoría
- Neumática
- Precio y entrega
- Por cotización
