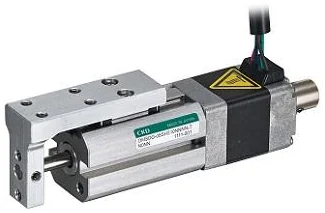

DMSDG

Electric actuator Compact guided typeCompact guided electric actuator featuring the same ease of · use and high rigidity as air components. · By using the same body as the air components, it achieves unprecedented high rigidity. · The controller can be connected to the compact ESC4 Series. · No dedicated software is required and various settings can be completed on site. · Furthermore, there are 3 input signals which do not require any programming.

• [Built-in spring in the drive mechanism]
• A spring drive system where the motor rotates the spring.
• Impact on the workpiece is reduced by the spring mechanism.
• For clamping and gripping applications, thrust can be generated even when the power supply is not energized. [No dedicated tools are required. Easy on-site configuration]
• The stop position is adjusted by turning the manual operation knob to the position where the cylinder switch responds.
• Set speed and gripping force with the controller's rotary switch.
