Serie CKD

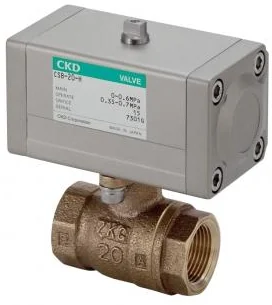

CSB・CSBF
Air operated 2-port ball valve for steam (compact rotary valve)Air operated 2-port valve for steam. Resistant to foreign matter with strong air operated opening and closing, it can control large flow rates with low pressure loss and supports fluid temperature up to 164°C.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Heat-resistant]
- Steam control up to fluid temperature 164°C is possible. [Large flow rate]
- Large flow rate control is possible with low pressure loss ball valve. [Reliability]
- Stable operation resistant to foreign matter is realized by strong air operated opening and closing.
Variantes de la serie
| Model No. | Product name | Actuation | Body material | Port size | Remarks |
|---|---|---|---|---|---|
| CSB | 2-port standard bore | Double acting | Copper alloy / stainless steel | Rc3/8 to 2 | |
| CSBF | 2-port full bore | Double acting | Copper alloy | Rc1/2 to 1 1/2 | |
| CSB-R | 2-port standard bore | Single acting | Copper alloy / stainless steel | Rc3/8 to 1 1/4 | |
| CSBF-R | 2-port full bore | Single acting | Copper alloy | Rc1/2 to 1 |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- CSB・CSBF
- Línea
- Ball valves
- Categoría
- Neumática
- Precio y entrega
- Por cotización
