Serie CKD

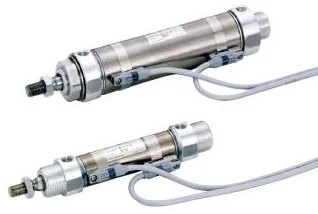

CMK2-P4※
P4* Series for Rechargeable battery manufacturing processes Small bore size cylinderMedium bore size (Φ20 to Φ40) series with high corrosion resistance and long service life among general purpose cylinders. A wide range of caulked cylinders is available. · · P4：The use of copper, zinc, and nickel-based materials and electrolytic nickel plating is limited in the construction of the flow path part and sliding part. · P40：The use of copper, zinc, and nickel-based materials, zinc plating, and electrolytic nickel plating is limited in the construction of all parts.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Wide range of choices]
- Round general-purpose cylinder that uses stainless steel for the cylinder tube.
- A great variety of variations / options, compatible with multiple applications.
Variantes de la serie
| Model No. | Product name | Bore size | Min. stroke length | Remarks |
|---|---|---|---|---|
| CMK2-P4※ | Double acting (Rechargeable battery manufacturing processes) | Φ20, Φ25, Φ32, Φ40 | 5 | |
| CMK2-S-P4※ | Single acting/ push (Rechargeable battery manufacturing processes) | Φ20, Φ25, Φ32, Φ40 | 5 | |
| CMK2-SR-P4※ | Single acting/ pull (Rechargeable battery manufacturing processes) | Φ20, Φ25, Φ32, Φ40 | 5 | |
| CMK2-P-P4※ | Double acting・Stroke adjustable (push) (Rechargeable battery manufacturing processes) | Φ20, Φ25, Φ32, Φ40 | 25 | |
| CMK2-R-P4※ | Double acting・Stroke adjustable (pull) (Rechargeable battery manufacturing processes) | Φ20, Φ25, Φ32, Φ40 | 25 | |
| CMK2-T-P4※ | Double acting/ heat resistance (Rechargeable battery manufacturing processes) | Φ20, Φ25, Φ32, Φ40 | 5 | |
| CMK2-※C-P4※ | Double acting/ rubber-air cushioned (Rechargeable battery manufacturing processes) | Φ20, Φ25, Φ32, Φ40 | 5 | |
| CMK2-C-P4※ | Double acting/ air cushion (Rechargeable battery manufacturing processes) | Φ20, Φ25, Φ32, Φ40 | 5 | |
| CMK2-Q-P4※ | Double acting/ position locking (Rechargeable battery manufacturing processes) | Φ20, Φ25, Φ32, Φ40 | 5 | |
| CMK2-F-P4※ | Double acting/ fine speed (Rechargeable battery manufacturing processes) | Φ20, Φ25, Φ32, Φ40 | 5 | |
| CMK2-D-P4※ | Double acting/ double rod (Rechargeable battery manufacturing processes) | Φ20, Φ25, Φ32, Φ40 | 5 | |
| CMK2-B-P4※ | Double acting/ back to back (Rechargeable battery manufacturing processes) | Φ20, Φ25, Φ32, Φ40 | 5 | |
| CMK2-M-P4※ | Double acting/ rotationsto (Rechargeable battery manufacturing processes) | Φ20, Φ25, Φ32, Φ40 | 5 | |
| CMK2-Z-P4※ | Double acting built-in speed controller (Rechargeable battery manufacturing processes) | Φ20, Φ25, Φ32, Φ40 | 5 |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- CMK2-P4※
- Línea
- Standard cylinders
- Categoría
- Neumática
- Precio y entrega
- Por cotización
