Serie CKD

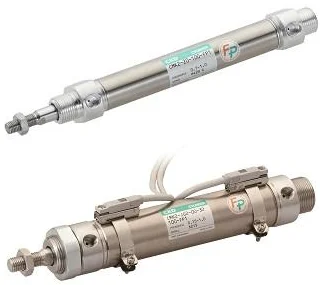

CMK2-FP1
FP* Series for Food manufacturing processes Small bore size cylinderMedium bore size (φ20 to φ40) series with high corrosion resistance and long service life among general purpose cylinders. · A wide range of caulked cylinders is available. · FP1 : Food grade lubricant (NSF H1) is used for flow paths and sliding parts.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Wide range of choices]
- Round general-purpose cylinder that uses stainless steel for the cylinder tube.
- A great variety of variations / options, compatible with multiple applications.
Variantes de la serie
| Model No. | Product name | Bore size | Min. stroke length | Max. stroke length | Remarks |
|---|---|---|---|---|---|
| CMK2-FP1 | Double acting (food manufacturing processes) | φ20, φ25, φ32, φ40 | 5 | 750 | |
| CMK2-S-FP1 | Single acting / push (food manufacturing processes) | φ20, φ25, φ32, φ40 | 5 | 300 | |
| CMK2-SR-FP1 | Single acting / pull (food manufacturing processes) | φ20, φ25, φ32, φ40 | 5 | 300 | |
| CMK2-P-FP1 | Double acting / stroke adjustable (push) (food manufacturing processes) | φ20, φ25, φ32, φ40 | 25 | 450 | |
| CMK2-R-FP1 | Double acting / stroke adjustable (pull) (food manufacturing processes) | φ20, φ25, φ32, φ40 | 25 | 750 | |
| CMK2-C-FP1 | Double acting / air cushioned (food manufacturing processes) | φ20, φ25, φ32, φ40 | 5 | 750 | |
| CMK2-※C-FP1 | Double acting / rubber-air cushioned (food manufacturing processes) | φ20, φ25, φ32, φ40 | 5 | 750 | |
| CMK2-D-FP1 | Double acting / double rod (food manufacturing processes) | φ20, φ25, φ32, φ40 | 5 | 500 | |
| CMK2-B-FP1 | Double acting / back-to-back (food manufacturing processes) | φ20, φ25, φ32, φ40 | 5 | 750 | |
| CMK2-M-FP1 | Double acting / rotation-stop (food manufacturing processes) | φ20, φ25, φ32, φ40 | 5 | 750 | |
| CMK2-Z-FP1 | Double acting built-in speed controller (food manufacturing processes) | φ20, φ25, φ32, φ40 | 5 | 750 | |
| CMK2-G2-FP1 | Double acting / coolant proof (packing: NBR) (food manufacturing processes) | φ20, φ25, φ32, φ40 | 5 | 750 | |
| CMK2-G3-FP1 | Double acting / coolant proof (packing: FKM) (food manufacturing processes) | φ20, φ25, φ32, φ40 | 5 | 750 | |
| CMK2-JG-FP1 | Double acting / waterproof type（all stainless steel exterior） (food manufacturing processes) | φ20, φ25, φ32, φ40 | 5 | 750 |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- CMK2-FP1
- Línea
- Standard cylinders
- Categoría
- Neumática
- Precio y entrega
- Por cotización
