Serie CKD

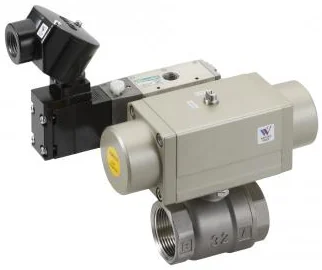

CHB-W・CHG-W
WP Series for Outdoors Air operated 2, 3-port ball valve (compact rotary valve)【NEW】Added specifications for air operated ball valves with outdoor specification. · · Air operated ball valve. Resistant to foreign matter with strong air operated opening and closing, it can control large flow rates with low pressure loss. With solenoid valve also available.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Low temperature use]
- Minimum ambient temperature -20°C compatible products [Guarantees durability for outdoor use]
- Compound cycle test (JIS H8502:1999) 960 hours cleared.
- Ozone exposure test (JIS D0205:1987) 400 hours cleared [Envisioning Harsh Environments]
- Weather resistance is improved by using metal for the resin parts of general-purpose items. [Ideal for applications that take a long time to operate]
- 3-year warranty product as an option [Large flow rate]
Variantes de la serie
| Model No. | Product name | Actuation | Body material | Port size (Rc) | Remarks |
|---|---|---|---|---|---|
| CHB-W | 2-port standard bore (Outdoor use) | Double acting | Stainless steel | 3/8 to 2 | |
| CHB-WR1 | 2-port standard bore (Outdoor use) | Single acting / NC | Stainless steel | 3/8 to 2 | |
| CHB-WR2 | 2-port standard bore (Outdoor use) | Single acting / NO | Stainless steel | 3/8 to 2 | |
| CHG-W | 3-port standard bore (Outdoor use) | Double acting | Stainless steel | 1/2 to 2 | |
| CHG-WR1 | 3-port standard bore (Outdoor use) | Single acting / normally B-C path | Stainless steel | 1/2 to 2 | |
| CHG-WR2 | 3-port standard bore (Outdoor use) | Single acting / A-C path | Stainless steel | 1/2 to 2 | |
| CHB-WV1 | 2-port standard bore (Outdoor use) | Double acting / NC | Stainless steel | 3/8 to 2 | |
| CHB-WX1 | 2-port standard bore (Outdoor use) | Single acting / NC | Stainless steel | 3/8 to 2 | |
| CHG-WV1 | 3-port standard bore (Outdoor use) | Double acting / normally B-C path | Stainless steel | 1/2 to 2 | |
| CHG-WX1 | 3-port standard bore (Outdoor use) | Single acting / normally B-C path | Stainless steel | 1/2 to 2 |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- CHB-W・CHG-W
- Línea
- Ball valves
- Categoría
- Neumática
- Precio y entrega
- Por cotización
