Serie CKD

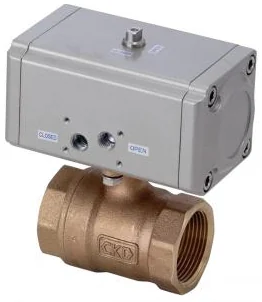

CHB-P4・CHG-P4
P4 *P4* Series for Rechargeable battery manufacturing processes Air operated 2, 3-port ball valve (compact rotary valve)Air operated ball valve. Resistant to foreign matter with strong air operated opening and closing, it can control large flow rates with low pressure loss. With solenoid valve also available. · · P4：The use of copper, zinc, and nickel-based materials and electrolytic nickel plating is limited in the construction of the flow path part and sliding part.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Large flow rate]
- Large flow rate control is possible with low pressure loss ball valve. [Reliability]
- Stable operation resistant to foreign matter is realized by strong air operated opening and closing. [Ease of use]
- Bi-directional pressurization is possible with 2-port valve. [Wide variation]
- Supports a wide range of port sizes from 3/8 to 2.
- Available for various applications with a lineup including models with spring return and with solenoid valve.
Variantes de la serie
| Model No. | Product name | Actuation | Body material | Port size | Remarks |
|---|---|---|---|---|---|
| CHB-P4 | 2-port standard bore (Rechargeable battery manufacturing processes) | Double acting | stainless steel/Oil-prohibited specifications | Rc3/8 to 2 | |
| CHBF-P4 | 2-port full bore (Rechargeable battery manufacturing processes) | Double acting | stainless steel / Oil-prohibited specifications | Rc1/2 to 1 1/2 | |
| CHG-P4 | 3-port (Rechargeable battery manufacturing processes) | Double acting | stainless steel / Oil-prohibited specifications | Rc1/2 to 2 |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- CHB-P4・CHG-P4
- Línea
- Ball valves
- Categoría
- Neumática
- Precio y entrega
- Por cotización
