Serie CKD

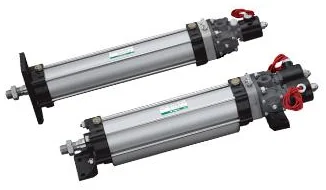

CAV2・COVP2・COVN2
Cylinder with ValveCylinder with valve available in three bore sizes (φ50, 75 and 100). Lubrication / no-lubrication and single solenoid / double solenoid can be selected.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Wide variation]
- In addition to the basic lubrication type, variations are available for no lubrication, short overall length, double solenoid, single solenoid. [Robust cylinder structure]
- Tie rod cylinder, lateral load resisting piston structure. [Robust valve structure]
- Slide valve structure with a solid record.
Variantes de la serie
| Model No. | Product name | Bore size (mm) | Standard stroke length (mm) | Remarks |
|---|---|---|---|---|
| CAV2 | Double acting / double solenoid lubrication | φ50, φ75, φ100 | 50, 75, 100, 150, 200, 300 | |
| COVP2 | Double acting / single solenoid pushed out when energized lubrication | φ50, φ75, φ100 | 50, 75, 100, 150, 200, 300 | |
| COVN2 | Double acting / single solenoid, pull when energized, lubrication | φ50, φ75, φ100 | 50, 75, 100, 150, 200, 300 | |
| CAV2-N | Double acting / double solenoid, no-lubrication | φ50, φ75, φ100 | 50, 75, 100, 150, 200, 300 | |
| COVP2-N | Double acting / single solenoid pushed out when energized no-lubrication | φ50, φ75, φ100 | 50, 75, 100, 150, 200, 300 | |
| COVN2-N | Double acting / single solenoid, pull when energized, no-lubrication | φ50, φ75, φ100 | 50, 75, 100, 150, 200, 300 | |
| CAV2-S/CAV2-NS | Double acting / double solenoid, with cushion, short overall length | φ50, φ75, φ100 | 50, 75, 100, 150, 200, 300 | |
| COVP2-S/COVP2-NS | Double acting / single solenoid pushed out when energized, with cushion, short overall length | φ50, φ75, φ100 | 50, 75, 100, 150, 200, 300 | |
| COVN2-S/COVN2-NS | Double acting / single solenoid, pull when energized, with cushion, short overall length | φ50, φ75, φ100 | 50, 75, 100, 150, 200, 300 |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- CAV2・COVP2・COVN2
- Línea
- Cylinders with valve
- Categoría
- Neumática
- Precio y entrega
- Por cotización
