Serie CKD
BN※

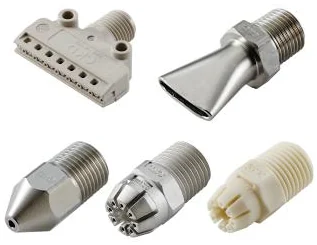

Air nozzleWe have nozzles of various shapes including energy saving type nozzles that enhance the pneumatic air source. · We propose to introduce the [Air blow nozzle] for energy saving with air blow.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- NEW [Renewed metal flat type]
- Reduces weight by 73% and total length by 61% while maintaining performance.
- It can also be mounted in locations with smaller spaces. [Enhancement effect] (BNE Series)
- The energy saving type nozzle uses a special structure that brings in the surrounding air to enhance the pneumatic air source.
- Reduces the load on the compressor, and blows air powerfully even with less air consumption. [Uniform striking force] (BNE Series)
- A special structure which ejects air more uniformly at the desired area.
Variantes de la serie
| Model No. | Product name | Port size (R) | Material | Shape | Remarks |
|---|---|---|---|---|---|
| BNE | Energy saving | 1/4 | Resin, metal | Flat, round | |
| BN | Standard | 1/8,1/4 | Metal | Forward | |
| BNB | Blower specification | 1/8,1/4 | Metal | Fan type | |
| BNE-8S10F | Energy saver Flat-type metal | Discontinued · 2025 10 30 |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- BN※
- Línea
- Nozzles
- Categoría
- Neumática
- Precio y entrega
- Por cotización
