Serie CKD
AVB

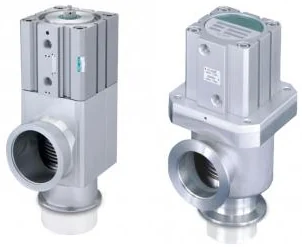

Air operated valve for high vacuumWith the special structure using CKD's unique molded bellows, a long drive life and high durability are achieved. · High vacuum valve with high reliability and ease of use.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Long life / high durability] (Part 7 Series)
- A standard model with a long service life and improved usability thanks to its unique structure.
- It is highly durable thanks to the optimized shape of the molded bellows.
- Lightweight with aluminum body.
- Unprecedented durability with the actual value of 3 million times (under our regulated conditions). [Increased flexibility in installation and piping] (Part 7 Series)
- The operation port can be set at any position in 4 directions.
Variantes de la serie
| Model No. | Product name | Connection | Actuation | Body | Remarks |
|---|---|---|---|---|---|
| AVB※17 | Molded bellows method | NW16, 25, 40, 50, 63, 80 | NC | Aluminum body | |
| AVB※47 | Molded bellows method | NW25, 40, 50, 63 | Two-stage | Aluminum body | |
| AVB※37 | Molded bellows method | NW16, 25, 40, 50, 63, 80, 100 | Double acting | Aluminum body | |
| AVB※13 | Molded bellows method | NW25, 40, 50, 80 | NC | Stainless steel body | |
| AVB※23 | Molded bellows method | NW25, 40, 50, 80 | NO | Stainless steel body | |
| AVB※33 | Molded bellows method | NW25, 40, 50, 80 | Double acting | Stainless steel body |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- AVB
- Línea
- High vacuum components
- Categoría
- Neumática
- Precio y entrega
- Por cotización
