Serie CKD

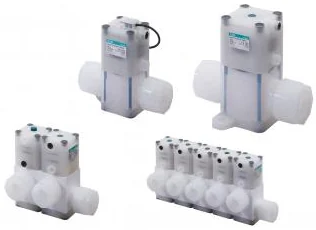

AMD※※3R・AMG※※3R・GAMD※※3R
Air operated valve for chemical liquidsNew standard of air operated valve for chemical liquids. · It is a high end product that supports a wide range of pressure, temperature and fluid conditions. · It can unify all the models that have been subdivided in use.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Working pressure range expanded]
- Working pressure range expanded due to the new seal structure.
- Equal working pressure at ports A and B. [Acid/alkali alike compatible]
- The use of highly chemically resistant polyvinylidene fluororesin (PVDF) for the actuator enables support for a wide range of applications as standard, regardless of acidity or alkalinity. [Expanded fluid temperatures]
- Significantly expanded working fluid temperature range for standard products (max. 120°C).
- Optional sensor available to confirm valve open / close state with signals. [3 types of mounting methods]
Variantes de la serie
| Model No. | Product name | Connection size (tube exterior) | Orifice size | Connection | Remarks |
|---|---|---|---|---|---|
| AMD※※3R | 2-port valve | 1/8”, 1/4”, 3/8”, 1/2”, 3/4”, 1” 3mm,6mm, 8mm, 10mm, 12mm, 25mm | 2 to 20 mm | Super 300, F-LOCK60 | |
| AMG※※3R | 3-port valve | 1/4”, 3/8”, 1/2”, 3/4”, 1” 6 mm, 8 mm, 10 mm, 12 mm, 25 mm | 3.5 to 20 mm | Super 300, F-LOCK60 | |
| GAMD※※3R | Manifold | 1/4”, 3/8”, 1/2”, 3/4”, 1” 6 mm, 8 mm, 10 mm, 12 mm, 25 mm | 3.5 to 20 mm | Super 300, F-LOCK60 |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- AMD※※3R・AMG※※3R・GAMD※※3R
- Línea
- Air operated valves
- Categoría
- Neumática
- Precio y entrega
- Por cotización
