Serie CKD

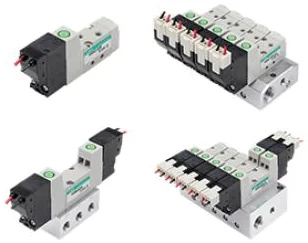

4SA0R・4SB0R・M4SA0R・M4SB0R
Pilot operated 5-port solenoid valvesMiniature 5-port solenoid valve.Our smallest class 5-port solenoid valve 4S Series is equipped with a power saving coil.We have redesigned the 4SR Series to offer both compactness and energy savings. · [Power consumption: 0.4 W] · [Cylinder bore size: up to ø25]
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Space saving]
- Our smallest class size is achieved with an individual wiring Discrete 5-port solenoid valve.Ideal for installing solenoid valves in Robot End-of-Arm and minimal spaces. [Incorporated low power consumption coil]
- A power saving coil is installed in the conventional 4S Series to realize low power consumption of 0.3 W*1.
- *1 Low exoergic/energy circuit option
- [Reduced wiring]
- Manifold support compatible with D-sub-connector and flat cable (MIL connector) is also available.
Variantes de la serie
| Model No. | Product name | Piping port position | Port size | Remarks |
|---|---|---|---|---|
| 4SA0R | 5-port single unit valve | Body piping | φ4 barbed fitting,M3 | |
| 4SAB0R | 5-port single unit valve | Sub-plate piping | M5 | |
| M4SA0R | 5-port single unit valve | Body piping | φ4 barbed fitting,M3 | |
| M4SB0R | 5-port single unit valve | Sub-plate piping | φ4 barbed fitting,φ6 barbed fitting,M5,Φ4 Push-in Fitting |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- 4SA0R・4SB0R・M4SA0R・M4SB0R
- Línea
- Pilot operated 3, 4, 5-port solenoid valves
- Categoría
- Neumática
- Precio y entrega
- Por cotización
