Serie CKD

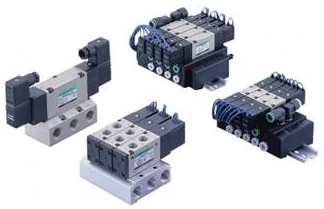

4KA/B･M4KA/B・MN4KB
Pneumatic valveImproved wear resistance and sliding performance of sliding parts, greatly improved life and stabilized responsiveness achieved. · [Cylinder bore size: φ20 to φ160]
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [High reliability]
- Reliable soft spool is used. [Long service life]
- Packing with excellent wear resistance adopted. [Responsivity]
- Responsivity upon initial operation is stabilized with the special packing. [High density integration]
- With free combinations of manifolds, it is possible to easily reduce or expand units.
Variantes de la serie
| Model No. | Product name | Piping port position | Port size | Remarks |
|---|---|---|---|---|
| 4KA※ | 5-port single unit valve | Body piping | Push-in fitting φ4, φ6, φ8, φ10, φ12, M5, Rc1/8 to 3/8 | |
| 4KB※ | 5-port single unit valve | Sub-plate piping | Rc1/8 to 1/2 | |
| M3KA1 | 3-port manifold valve | Body piping | Push-in fitting φ4, φ6, M5 | |
| M4KA※ | 5-port manifold valve | Refer to single unit | Push-in fitting φ4, φ6, φ8, φ10, φ12, M5, Rc1/8 to 3/8 | |
| M4KB1 | 4-port manifold valve | Sub-plate piping | Push-in fitting φ6, M5, Rc1/8 | |
| M4KB※ | 5-port manifold valve | Sub-plate piping | Push-in fitting φ4, φ6, φ8, φ10, φ12, M5, Rc1/8 to 3/8 | |
| MN4KB※ | 5-port block manifold valve | Sub-plate piping | Push-in fitting φ4, φ6, φ8, φ10, φ12 |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- 4KA/B･M4KA/B・MN4KB
- Línea
- Pilot operated 3, 4, 5-port solenoid valves
- Categoría
- Neumática
- Precio y entrega
- Por cotización
