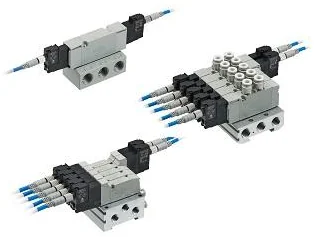

4GD※※0EX-P4・4GE※※0EX-P4
P4* Series for Rechargeable battery manufacturing processes Intrinsically safe explosion-proof pilot 3,5-port valve 【Certified country : China, Korea and International】Explosion-proof performance : Ex ib ⅡC T4 Gb · Certification No.: · NEPSI GYJ19.1311X（NEPSI） · IECEx IBE 19.0008（IECEx) · CCC 2020322307000310 (CCC) *Addition in October 2020 · 20-KA4B0-0766 (KCs) *Added January 2021 · · This is an intrinsically safe explosion-proof solenoid valve that can be used in Zone 1 and Zone 2. The explosion-proof solenoid valve supports a wide variety of flow rates in 4 sizes, including the smallest class valve width of 10 mm. Optimal for devices that control chemical agents and liquids used in the manufacturing of pharmaceuticals, rechargeable batteries, etc. Contributes to space saving of solenoid valves for air operated valve operation. · [Applicable cylinder bore size: up to Φ160] · · P4：The use of copper, zinc, and nickel-based materials and electrolytic nickel plating is limited in the construction of the flow path part and sliding part.
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- [Compatible with rechargeable batteries]
- Restricts the use of copper, zinc, nickel-based materials, and electrolytic nickel plating for the flow path and sliding parts. Fitting material: SUS. [Japan certified Explosion-proof product]
- Explosion-proof performance: Ex ib ⅡC T4 Gb
- Certification No.:
- GYJ19.1311（NEPSI）
- IECEx IBE 19.0008（IECEx)
Variantes de la serie
| Model No. | Product name | Piping port position | Port size | Remarks |
|---|---|---|---|---|
| 3GD※※0EX-P4 | 3-port single unit valve (Rechargeable battery manufacturing processes) | Body piping | Push-in fitting Φ1.8, Φ4, Φ6, Φ8, Φ10,Φ12, M5, Rc1/8, 1/4, 3/8 | |
| 4GD※※0EX-P4 | 5-port single unit valve (Rechargeable battery manufacturing processes) | Body piping | Push-in fittingΦ1.8,Φ4, Φ6, Φ8, Φ10,Φ12, M5, Rc1/8, 1/4,3/8 | |
| 3GE※※0EX-P4 | 3-port single unit valve (Rechargeable battery manufacturing processes) | Base pipping | Rc1/8, 1/4,3/8,1/2 | |
| 4GE※※0EX-P4 | 5-port single unit valve (Rechargeable battery manufacturing processes) | Base pipping | Rc1/8, 1/4,3/8,1/2 | |
| M3/M4GD※※0EX-P4 | Individual writing manifold (Rechargeable battery manufacturing processes) | Body piping | Push-in fittingΦ1.8,Φ4, Φ6, Φ8, Φ10, M5, Rc1/8, 1/4,3/8 | |
| M3/M4GE※※0EX-P4 | Individual writing manifold (Rechargeable battery manufacturing processes) | Base pipping | Push-in fittingΦ1.8,Φ4, Φ6, Φ8, Φ10, M5, Rc1/8, 1/4,3/8,1/2 | |
| D5048S | Insulated barrier (intrinsically safe explosion-proof structure) (Rechargeable battery manufacturing processes) | |||
| EXDO | Insulation barrier (intrinsic safety explosion-proof structure) *NEPSI, CCC only |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- 4GD※※0EX-P4・4GE※※0EX-P4
- Línea
- Explosion-proof 3,5-port solenoid valves
- Categoría
- Neumática
- Precio y entrega
- Por cotización
