Serie CKD

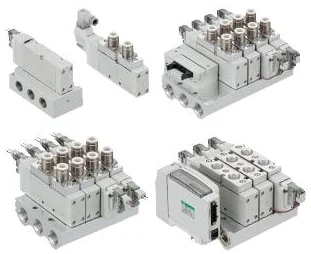

4GA4R・4GB4R
Pilot operated 5-port solenoid valveHigh-performance, high-flow 5-port valve incorporating environmental performance, safety features, ease of operation, and reliability. The 4G1/2/3R series energy-saving coil has been integrated into the 4G4 and upgraded to the 4G4R. Large cylinders with diameters up to ø140 can be driven with only 0.1 W power consumption. · [Applicable cylinder bore size: ø6 to ø400]
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Equipped with energy-saving coil]
- The 4G1/2/3R series energy-saving coil has been integrated into the 4G4, resulting in the upgraded 4G4R. Large cylinders with diameters up to ø140 can be driven with only 0.1 W power consumption. [Enables continuous energization]
- Continuous energization is enabled by the adoption of a new coil actuator*. Reduced power consumption is also achieved. (0.35 W, 0.1 W… low heat generation/energy-saving type)
- *Continuous energization is possible with the low heat generation/energy-saving circuit. [Thin slave unit T8 Series compatible]
- CC-Link
- PROFIBUS-DP
Variantes de la serie
| Model No. | Product name | Body piping | Port size | Remarks |
|---|---|---|---|---|
| 4GA4※0R | Single valve | Body piping | Push-in fitting φ8, φ10, φ12, Rc/G/NPT3/8 | |
| 4GB4※0R | Single valve | Base piping | Rc/G/NPT3/8, 1/2 | |
| M4GA4※0R | Individual wiring manifold | Body piping | Push-in fitting φ8, φ10, φ12, Rc/G/NPT3/8 | |
| M4GB4※0R | Individual wiring manifold | Base piping | Push-in fitting φ8, φ10, φ12, Rc/G/NPT1/4, 3/8, 1/2 | |
| M4GA4※0R-T※ | Reduced wiring manifold | Body piping | Push-in fitting φ8, φ10, φ12, Rc/G/NPT3/8 | |
| M4GB4※0R-T※ | Reduced wiring manifold | Base piping | Push-in fitting φ8, φ10, φ12, Rc/G/NPT1/4, 3/8, 1/2 |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- 4GA4R・4GB4R
- Línea
- Pilot operated 3, 4, 5-port solenoid valves
- Categoría
- Neumática
- Precio y entrega
- Por cotización
