Serie CKD

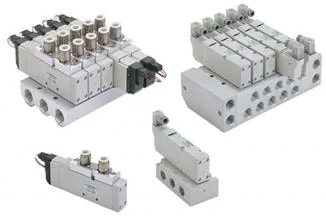

4GA4-P4・4GB4-P4
P4* Series for Rechargeable battery manufacturing processes Pilot operated 5-port solenoid valve【Discontinued model】 · · High performance large flow rate type 5-port valve covering environmental performance, safety functions, operability, and reliability. · [Cylinder bore size: φ100 to φ140] · · P4：The use of copper, zinc, and nickel-based materials and electrolytic nickel plating is limited in the construction of the flow path part and sliding part.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Tool-free manual override]
- Hand alone operation is possible.
- Locking/non-locking common use type.
- With protective cover to prevent misoperation of manual devices due to external force, etc.
- Safe design so that the cover cannot be closed when the manual lock is engaged. [Wiring connector upward/lateral common]
- Switch easily between upward and lateral facing, just by changing the connector insert position. [Wide array of electrical connections]
Variantes de la serie
| Model No. | Product name | Piping port position | Port size | Remarks |
|---|---|---|---|---|
| 4GA4※0-P4 | Single valve (Rechargeable battery manufacturing processes) | Body piping | Push-in fitting φ8, φ10, φ12, Rc/G/NPT3/8 | Discontinued · 2025 03 31 |
| 4GB4※-P4 | Single valve (Rechargeable battery manufacturing processes) | Base piping | Rc/G/NPT3/8, 1/2 | Discontinued · 2025 03 31 |
| M4GA4※0-P4 | Individual wiring manifold (Rechargeable battery manufacturing processes) | Body piping | Push-in fitting φ8, φ10, φ12, Rc/G/NPT3/8 | Discontinued · 2025 03 31 |
| M4GB4※0-P4 | Individual wiring manifold (Rechargeable battery manufacturing processes) | Base piping | Push-in fitting φ8, φ10, φ12, Rc/G/NPT1/4, 3/8, 1/2 | Discontinued · 2025 03 31 |
| M4GA4※0-T※-P4 | Reduced wiring manifold (Rechargeable battery manufacturing processes) | Body piping | Push-in fitting φ8, φ10, φ12, Rc/G/NPT3/8 | Discontinued · 2025 03 31 |
| M4GB4※0-T※-P4 | Reduced wiring manifold (Rechargeable battery manufacturing processes) | Base piping | Push-in fitting φ8, φ10, φ12, Rc/G/NPT1/4, 3/8, 1/2 | Discontinued · 2025 03 31 |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- 4GA4-P4・4GB4-P4
- Línea
- Pilot operated 3, 4, 5-port solenoid valves
- Categoría
- Neumática
- Precio y entrega
- Por cotización
