Serie CKD

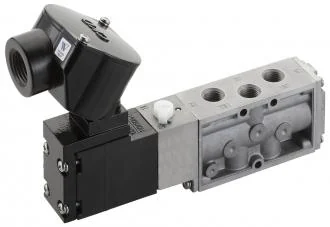

4F-W
WP Series for Outdoors Pneumatic valve[NEW] Added model of outdoor specification 5-port valve 4F-W Series. The ambient temperature has been enhanced with conventional models. · · Terminal box lid has a rugged sealing structure. IP 65 is certified. With a seal coating, water, etc., is completely prevented from entering the device. · [Cylinder bore size: φ6 to φ250]
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Low temperature use]
- Minimum ambient temperature -20°C compatible products
- (4F2,3 series) [Ideal for applications that take a long time to operate]
- Warranty of up to 3 years (Option*) [Long service life / high reliability]
- Ensures durability and reliability comparable to metal spool valve. [Effective regardless of frequency of use]
- High frequency use is made possible by adopting a special spool structure.
Variantes de la serie
| Model No. | Product name | Port size | Ambient temperature range | Remarks |
|---|---|---|---|---|
| 4F2※0-W | Single valve (Outdoor use) | 1/4 | -10℃～60℃ | |
| 4F2※0-WC | Single Valve (Outdoor type) | 1/4 | -20℃～60℃ | |
| 4F3※0-W | Single valve (Outdoor use) | 1/4, 3/8 | -10℃～60℃ | |
| 4F3※0-WC | Single Valve (Outdoor type) | 1/4, 3/8 | -20℃～60℃ | |
| 4F4※0-Ｗ | Single Valve (Outdoor type) | 1/4, 3/8 | -10℃～60℃ | |
| 4F5※-W | Single Valve (Outdoor type) | 3/8, 1/2 | -10℃～60℃ | |
| 4F6※-W | Single Valve (Outdoor type) | 1/2, 3/4 | -10℃～60℃ | |
| 4F7※-W | Single Valve (Outdoor type) | 3/4, 1 | -10℃～60℃ |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- 4F-W
- Línea
- Pilot operated 3, 4, 5-port solenoid valves
- Categoría
- Neumática
- Precio y entrega
- Por cotización
