Serie CKD

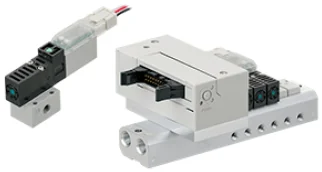

3QR
Direct acting 3-port valve【Special-order product】Compact direct acting 3-port valve. · Special specification products compatible with continuous energization, self-holding, and reduced wiring. · (Three types of products are listed on a single product page.) · · [Cylinder bore size: ø6 to ø20]
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Continuous energization specifications]
- Supports continuous energization with reduced power consumption.Ideal specifications for air operated valve operation and return to origin during power outages. [Self-holding type]
- Capable of holding the switching position even during power outages, such as for vacuum switching.In addition to the standard NPN, PNP specifications have been added as special specification products. [Reduced wiring specifications]
- Compatible with centralized terminal blocks, D-sub connectors, and flat cables.
- Compatible with standard specifications of 3QRA/B series and continuous energization specifications.*Self-holding specifications (NPN/PNP) are not compatible with reduced wiring specifications.
Variantes de la serie
| Model No. | Product name | Piping port position | Port size | Remarks |
|---|---|---|---|---|
| 3QRB110 | Single valve (continuously energized specifications)【Specal-order product】 | Sub-plate piping | M5, Rc1/8 | |
| M3QRB110 | Individual wiring manifold (continuously energized specifications)【Special-order product】 | Sub-plate piping | M5, Rc1/8 | |
| 3QRB120 | Single valve (self-hold)【Special-order product】 | Sub-plate piping | M5, Rc1/8 | |
| M3QRB120 | Individual wiring manifold (self-hold)【Special-order product】 | Sub-plate piping | M5, Rc1/8 | |
| M3QRA110-T | Reduced wiring block manifold【Special-order product】 | Body piping | M5, Rc1/8 | |
| M3QRB110-T | Reduced wiring block manifold【Special-order product】 | Sub-plate piping | M5, Rc1/8 |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- 3QR
- Línea
- Budding products【Special-order product】
- Categoría
- Neumática
- Precio y entrega
- Por cotización
