Serie CKD

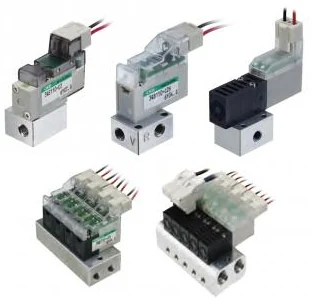

3QR・3QB・3QE・3QZ
Direct acting 3-port valveHandles compact 3-port valve applications across the board. (Air operated valve/cylinder drive, suction transport, · air blow, etc.) · 3QE / Z Series for positive pressure only, · 3QB Series for positive and negative pressure, · 3QR Series with large flow rate for positive and negative pressure. · [Cylinder bore size: φ6 to φ20]
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Environmental performance] (3QE / 3QZ Series)
- In addition to high durability, stable responsiveness is realized by prevention of malfunction and snagging due to foreign matter.
- Suppresses heat generation and reduces electricity. [Maintainability] (3QE / 3QZ Series)
- Upward/lateral common wiring connector and manual override realize ease of use and high maintainability.
- Enables continuous energization. (Option) [Compact and lightweight] (3QB Series)
- Valve width 10 mm.
Variantes de la serie
| Model No. | Product name | Piping port position | Port size | Remarks |
|---|---|---|---|---|
| 3QE | Positive pressure dedicated Single unit | Base side piping | M5 | |
| 3QB | Positive / negative pressure switching, large flow rate Single unit | Base side piping | M5 | |
| 3QRA | Positive / negative pressure switching, large flow rate Single unit | Body piping | M5 | |
| 3QRB | Positive / negative pressure switching, large flow rate Single unit | Base side piping | M5 | |
| M3QE | Positive pressure dedicated Individual wiring manifold | Base side piping | M5 | |
| M3QZ | Positive pressure dedicated Individual wiring manifold | Base rear piping | M5 | |
| M3QB | Positive pressure dedicated Individual wiring manifold | Base side piping | M5 | |
| M3QRA | Positive / negative pressure switching, large flow rate Individual wiring manifold | Body piping | M5, Rc1/8 | |
| M3QRB | Positive / negative pressure switching, large flow rate Individual wiring manifold | Base side piping | M5, Rc1/8 |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- 3QR・3QB・3QE・3QZ
- Línea
- Direct acting 3-port solenoid valves
- Categoría
- Neumática
- Precio y entrega
- Por cotización
