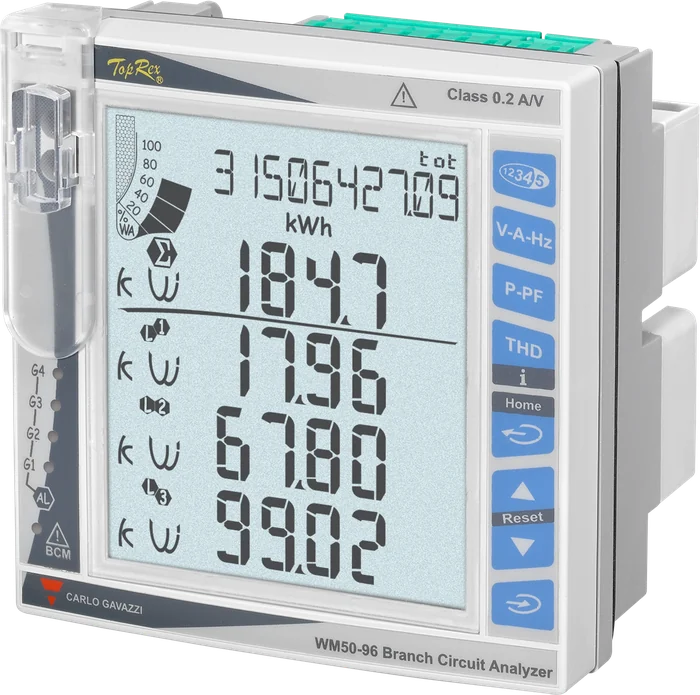

WM50AV53HBC
Modular three-phase Power Analyzer, Optional I/O, Communication Port (Modbus Modules, Optical Port) and datalog. Auxi…Modular three-phase Power Analyzer, Optional I/O, Communication Port (Modbus Modules, Optical Port) and datalog. Auxiliary power supply
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Voltage inputs
- 1-phase (2-wire), 120 V L-N; 1-phase (2-wire), 220 V L-N; 1-phase (2-wire), 230 V L-N; 1-phase (2-wire), 240 V L-N; 2-phase (3-wire), 120/240 V; 2-phase (3-wire), 220/440 V; 2-phase (3-wire), 240/480 V; 3-phase (4-wire), 120/208 V; 3-phase (4-wire), 127/220 V; 3-phase (4-wire), 220/380 V; 3-phase (4-wire), 230/400 V; 3-phase ( 4-wire), 240/415 V; 3-phase (4-wire), 277/480 V; 3-phase (3-wire), 240 V L-L; 3-phase (3-wire), 380 V L-L; 3-phase (3-wire), 400 V L-L; 3-phase (3-wire), 415 V L-L; 3-phase (3-wire), 480 V L-L
- Frequency
- 50Hz; 60Hz
- Current inputs
- 5 A current transformers
- Energy metering
- Consumption and generation
- Static output
- Alarm; Pulse; Remote control
- Communication port and protocol
- RS485 (Modbus RTU); Ethernet (Modbus TCP/IP)
- Power supply
- Auxiliary power supply 120 V ac; Auxiliary power supply 220-240 Vac
- Approvals, marks, declarations
- CE (Europe); cULus (North America); UKCA (UK)
Datos del producto
- Marca
- Carlo Gavazzi
- Número de parte
- WM50AV53HBC
- Línea
- Energy meters and analysers · Multi-load metering
- Categoría
- Medición y monitoreo
- Precio y entrega
- Por cotización
