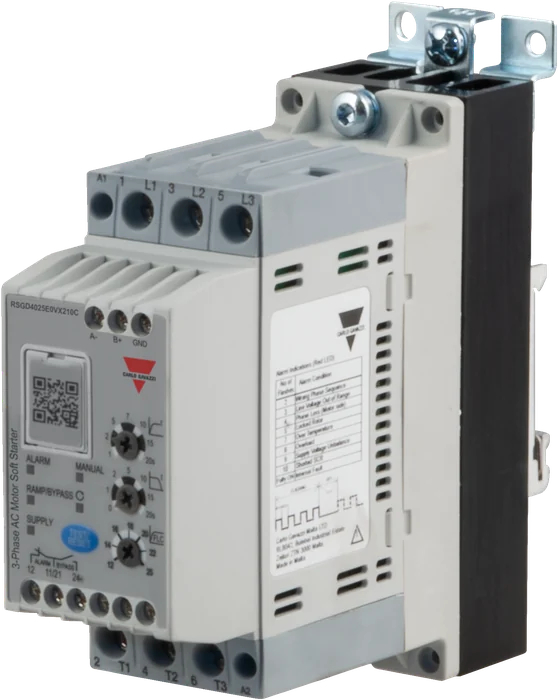

RSGD4025F0VX210
3 phase soft starter for induction motors, Operating voltage (Ue): 220 - 400 Vac , Rated current (Ie): 25 Aac, Contro…3 phase soft starter for induction motors, Operating voltage (Ue): 220 - 400 Vac , Rated current (Ie): 25 Aac, Control voltage (Uc): 24 Vac/dc , DIN rail, Supply voltage (Us): Internal, 2-phase control, 2 relay outputs, Class 10 overload
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Hoja de datos en españolgavazziautomation.comDatasheet (English)gavazziautomation.comManual de instalacióngavazziautomation.comModelo 3D (STEP)gavazziautomation.comCertificado ULgavazziautomation.com
Especificaciones técnicas
- Rated operation current Ie at 40C Tu
- 25 A
- Rated operating voltage Ue
- 187 V ... 440 V
- Rated power three-phase motor, inline, at 230 V
- 5.5 kW
- Rated power three-phase motor, inline, at 400 V
- 11 kW
- Rated control supply voltage Us at AC 50HZ
- 21.6 V ... 26.4 V
- Rated control supply voltage Us at DC
- 21.6 V ... 26.4 V
- Internal bypass
- Yes
- Product Width
- 45 mm
- Product Height
- 149 mm
- Product Depth
- 137 mm
Datos del producto
- Marca
- Carlo Gavazzi
- Número de parte
- RSGD4025F0VX210
- Línea
- Soft Starters and Frequency Drives · General purpose soft starters
- Categoría
- Contactores y arrancadores
- Precio y entrega
- Por cotización
