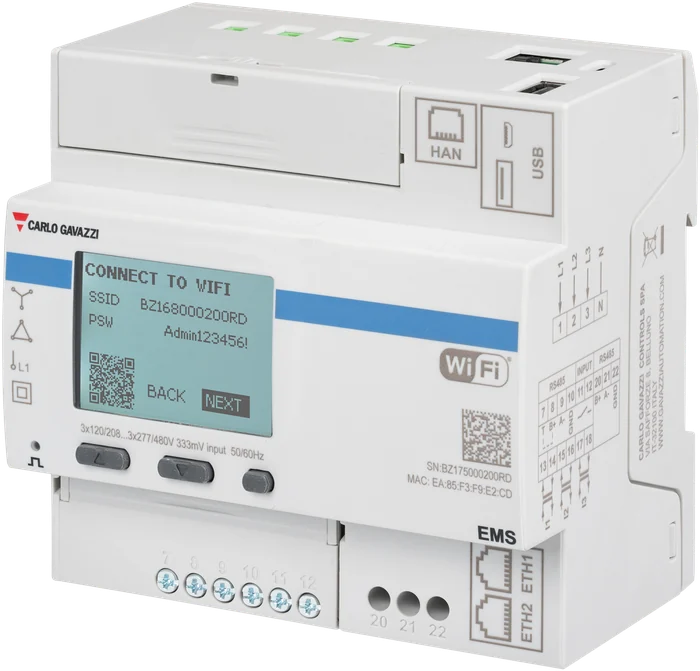

EMS10MV5S1X
Three-phase all-in-one IoT meter, 120-277 V L-N, 208-480 V L-L, current sensor 333 mV, self power supply, with RS485 …Three-phase all-in-one IoT meter, 120-277 V L-N, 208-480 V L-L, current sensor 333 mV, self power supply, with RS485 Modbus master port, RS485 Modbus slave port, Digital input
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Hoja de datos en españolgavazziautomation.comDatasheet (English)gavazziautomation.comCertificado ULgavazziautomation.com
Especificaciones técnicas
- Voltage inputs
- 1-phase (2-wire), 120 V L-N; 1-phase (2-wire), 220 V L-N; 1-phase (2-wire), 230 V L-N; 1-phase (2-wire), 240 V L-N; 2-phase (3-wire), 120/240 V; 2-phase (3-wire), 220/440 V; 2-phase (3-wire), 240/480 V; 3-phase (4-wire), 120/208 V; 3-phase (4-wire), 127/220 V; 3-phase (4-wire), 220/380 V; 3-phase (4-wire), 230/400 V; 3-phase ( 4-wire), 240/415 V; 3-phase (4-wire), 277/480 V; 3-phase (3-wire), 240 V L-L; 3-phase (3-wire), 380 V L-L; 3-phase (3-wire), 400 V L-L; 3-phase (3-wire), 415 V L-L; 3-phase (3-wire), 480 V L-L; 3-phase (4-wire delta), 120(208) / 240 V; 3-phase (4-wire delta), 240(415) / 480 V
- Frequency
- 50Hz; 60Hz
- Current inputs
- 333 mV current sensors
- Support period
- December 31st 2041
- End of life
- December 31st 2036
- Energy metering
- Consumption and generation
- Static output
- Alarm; Remote control
- Communication port and protocol
- Ethernet (Modbus TCP/IP); BACnet IP
- Power supply
- Self power supply
- Approvals, marks, declarations
- CE (Europe); cULus (North America)
Datos del producto
- Marca
- Carlo Gavazzi
- Número de parte
- EMS10MV5S1X
- Línea
- Energy meters and analysers · All-in-one IoT meters
- Categoría
- Medición y monitoreo
- Precio y entrega
- Por cotización
