XC410-CU

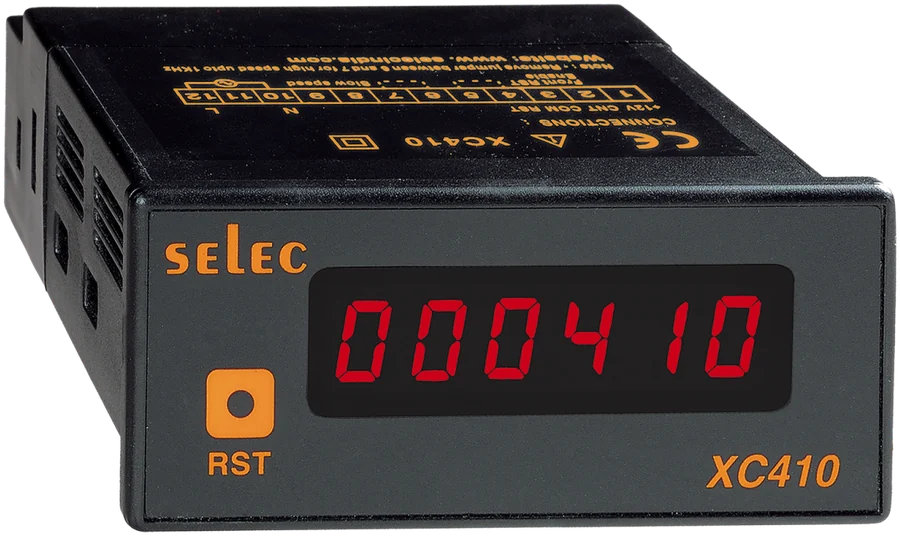

Compact 6 Digit CounterXC410-CU - Compact 6 Digit Counter 7 Segment LED Display Features • 6 Digit, 7 Segment LED Counter • Compact Size • Inbuilt Sensor Supply DATA Sheet Link < Product photo may vary depending on part number selection.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Process Controllers - Supply Voltage
- 90-270V AC/DC
- Process Contollers - Input Voltage
- 90-270V AC/DC (50/60Hz)
- Process Controllers - Input Measurement
- NPN/PNP
- Process Controllers - Reset
- Front, Remote
- Process Controllers - Power Consumption
- 5VA max
- Process Controllers - Operating Temperature
- 0 to 50°C (32 to 122°F)
- Process Controllers - Storage Temperature
- -20 to 75°C (-4 to 167°F)
- Process Controllers - Humidity (Non-Condensing)
- 95% Relative Humidity
- Process Controllers - Weight
- 110 grams (.242 lbs)
- Process Controllers - Display Type
- 7 Segment LED Display
- Process Controllers - Digits
- 1 row of 6 digits
- Process Controllers - Input Type
- Voltage Pulse (3-30V DC) from proximity, switches, encoders, solid state devices, potential free contact
- Process Controllers - Input Speed
- A) 0-20Hz B) 0-1kHz
- Process Controllers - Range
- 999999 counts
- Process Controllers - Counting Direction
- Up
- Process Controllers - Memory
- Yes
Datos del producto
- Marca
- Altech
- Número de parte
- XC410-CU
- Línea
- Process Controllers
- Categoría
- Medición y monitoreo
- Precio y entrega
- Por cotización
