XC1200-CU

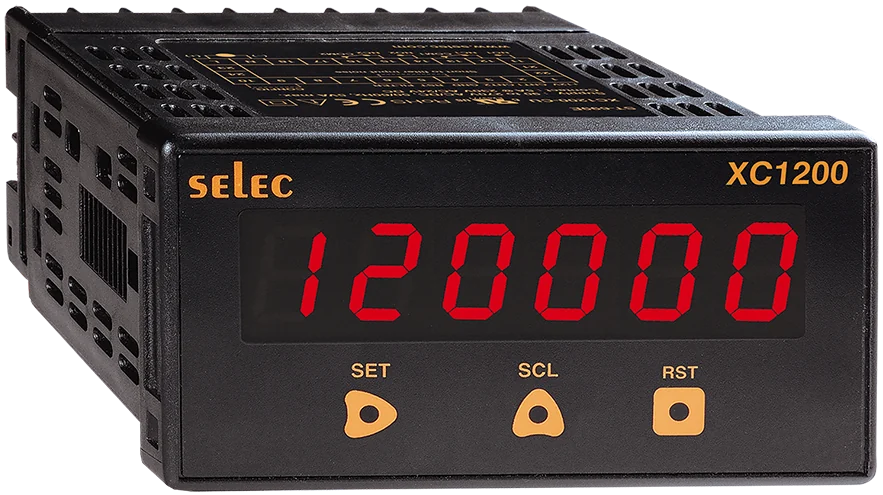

Compact 6 Digit Counter / 5 Digit RPM IndicatorXC1200-CU - Compact 6 Digit Counter / 5 Digit RPM Indicator 7 Segment LED Display Features • 6 Digit, 7 Segment LED Counter, and 5 digit RPM indicator • Compact Size • Inbuilt Sensor Supply • 2 Set Points DATA Sheet Link < Product photo may vary depending on part number selection.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Process Controllers - Supply Voltage
- 85-270V AC/DC
- Process Controllers - LED Indication
- LED 1: Relay 1, LED 2: Relay 2
- Process Contollers - Input Voltage
- 85-270V AC/DC (50/60Hz)
- Process Controllers - Input Measurement
- NPN/PNP
- Process Controllers - Main Output
- DPDT -2 C/O - 5A @ 230V AC / 24 V DC
- Process Controllers - Reset
- Front (user selectable), Remote
- Process Controllers - Power Consumption
- 5VA max
- Process Controllers - Operating Temperature
- 0 to 50°C (32 to 122°F)
- Process Controllers - Storage Temperature
- -20 to 75°C (-4 to 167°F)
- Process Controllers - Humidity (Non-Condensing)
- 95% Relative Humidity
- Process Controllers - Weight
- 230 grams (.507 lbs)
- Process Controllers - Display Type
- 7 Segment LED Display
- Process Controllers - Digits
- 1 row of 6 digits
- Process Controllers - Resolution
- 1/0.1/0.01/0.001/0.0001 Degree
- Process Controllers - Modes
- ON Delay / Interval delay /Auto reset / Time pulse repeat
- Process Controllers - Sensor Supply
- Inbuilt, 12V DC, 30mA
- Process Controllers - Input Type
- Voltage Pulse (3-30V DC) from proximity, switches, encoders, solid state devices, potential free contact
- Process Controllers - Input Speed
- A) 0-30Hz B) 0-2.5kHz C) 0-5kHz (for up and down mode only)
- Process Controllers - Range
- 999999 counts
- Process Controllers - Counting Direction
- Up, Down, Bidirectional, Quadrature
- Process Controllers - Memory
- Yes
- Process Controllers - Scale Factor
- 0.00001-9.99999 X 10n , n equals -3, -2, -1, 0, 1, 2
- Process Controllers - Rate
- .05% +/- 2 counts
