TC244AX-CU

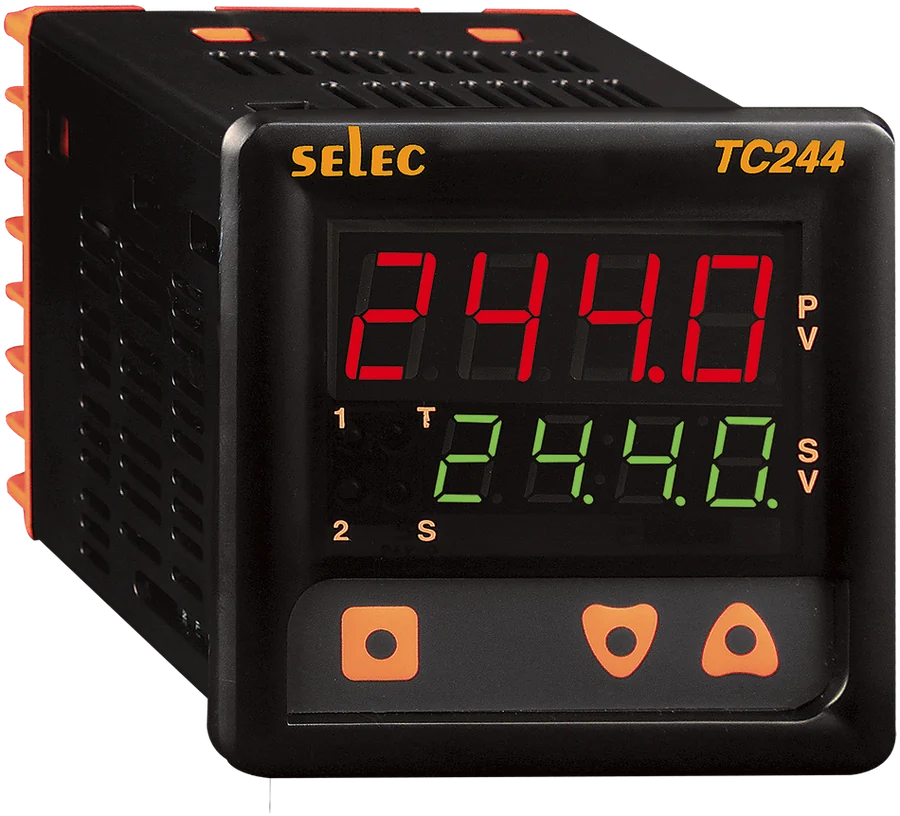

Dual Display, 2 Output Temperature ControllersTC244AX-CU - Dual Display, 2 Output Temperature Controllers 7 Segment LED Display Features • Dual Display, 4 digits, 7 segment LED • TC/RTD Inputs • PID, ON-OFF Control • Dual Setpoint • °C / °F • Field selectable Control Output (Relay or SSR) • Additional Aux. Output • Easy to use DATA Sheet Link < Product photo may vary depending on part number selection.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Process Controllers - Supply Voltage
- 85-270V AC/DC
- Process Controllers - Input Measurement
- Thermocouple (J,K,T,R,S) / RTD (Pt100)
- Process Controllers - Main Output
- Selectable- SPDT- 10A @250V AC / 30V DC, resistive OR SSR Drive 12V DC, 50mA
- Process Controllers - Hysteresis
- 0.1-99.9
- Process Controllers - Power Consumption
- 5VA max @230V AC
- Process Controllers - Operating Temperature
- 0 to 50°C (32 to 122°F)
- Process Controllers - Storage Temperature
- -20 to 70°C (-4 to 158°F)
- Process Controllers - Humidity (Non-Condensing)
- 95% Relative Humidity
- Process Controllers - Weight
- 200 grams (.44 lbs)
- Process Controllers - Display Type
- 7 Segment LED Display
- Process Controllers - Digits
- 2 rows of 4 digits
- Process Controllers - Resolution
- 1/0.1 Degree for TC/RTD / Fixed 1 Degree for R and S TC
- Process Controllers - Control Output
- 10A Relay or 12V DC SSR
- Process Controllers - Sampling Time
- 0.25 sec
- Process Controllers - Input Filter (FTC)
- 0.2 to 10.0 sec
- Process Controllers - PID
- Proportional Band (P): 0-400° Integral Time (I): 0-999 sec Derivative Time (D): 0-200 sec
- Process Controllers - Temperature Unit
- °C / °F
- Process Controllers - Cycle Time
- 0.1 to 99.9 sec.
- Process Controllers - Manual Reset Value
- -19.9° to 19.9°
- Process Controllers - Set Points
- 2
- Process Controllers - J, K,T / TC INPUTS*
- 0.25% of F.S. ±1°
- Process Controllers - R, S INPUTS*
- 0.5% of F.S. ±2°
- Process Controllers - RTD INPUT
- 0.1% of F.S. ±1°
- Process Controllers - Auxiliary Output
- SPDT- 5A @250V AC / 30V DC, resistive (TC544A: SPST Relay)
Datos del producto
- Marca
- Altech
- Número de parte
- TC244AX-CU
- Línea
- Process Controllers
- Categoría
- Medición y monitoreo
- Precio y entrega
- Por cotización
