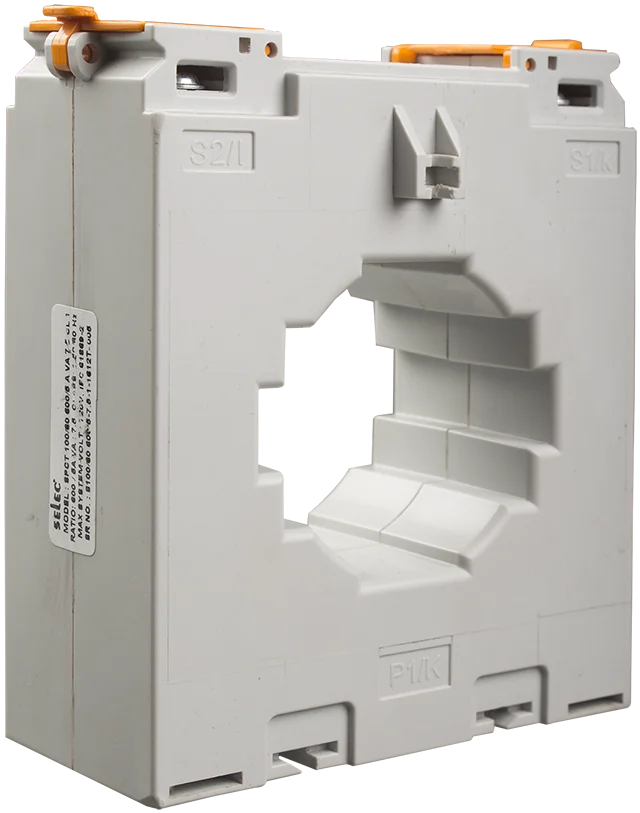

SPCT 62/30 75/5A VA3 CL3
Transformador de Corriente(CT) 62/30, hueco 30x10mm, relacionSPCT 62/30-75/5 A VA 3 CL 3 - Current Transformers Features • Use with Different Bus Bar • Panel Mount / Din Rail Mount (Optional Accessory) • Accuracy: Class 0.5 to 5 DATA Sheet Link < Product photo may vary depending on part number selection.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Process Controllers - Operating Temperature
- 0 to 50°C (32 to 122°F)
- Process Controllers - Storage Temperature
- -5 to 50°C (23 to 122°F)
- Process Controllers - Humidity (Non-Condensing)
- 95% Relative Humidity
- Process Controllers - Rated Primary Rating
- 30A-4000A
- Process Controllers - Rated secondary Rating
- 5A
- Process Controllers - Rated Burden
- 1 VA-15 VA
- Process Controllers - Class of Accuracy
- 0.5-5
- Process Controllers - Thermal Nominal Continuous
- 120% of In Rated Current (Icth)
- Process Controllers - Thermal Short Circuit Current (LTH)
- Ith equals 60 X In for 1 sec.
- Process Controllers - Instrument security Factor
- FS greater than 5
- Process Controllers - Isolation Class
- E (120°C max)
- Process Controllers - Max Operating Voltage (Um)
- 720 V maximum
- Process Controllers - Isolation Test Voltage
- 3 kV AC (1 min.)
- Process Controllers - Nominal Rated Frequency
- AC 50Hz-60Hz
- Process Controllers - Wire Aperture (mm)
- 30x10
- Process Controllers - Current Ratio
- 75/5
- Process Controllers - Burden in VA
- 3
- Process Controllers - Accuracy Class
- 3
Datos del producto
- Marca
- Altech
- Número de parte
- SPCT 62/30 75/5A VA3 CL3
- Línea
- Process Controllers
- Categoría
- Medición y monitoreo
- Precio y entrega
- Por cotización
