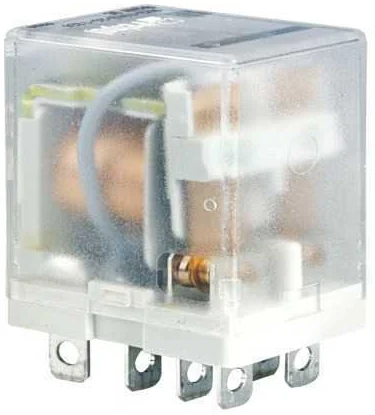

RY2-2012-26-5120-L
DPDT, 12A Industrial Electromagnetic RelayRY2 DPDT AC 50/60Hz Coil, Industrial Electromagnetic Relay Standard Features: Relays of general application For plug-in sockets, 35 mm rail mount or on panel mounting Cadmium-free contacts R2M and RUC also for PCB and soldering connections AC and DC coils available DATA Sheet Link
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Industrial Relays - Coil Voltage (V)
- 120
- Industrial Relays - Coil Type
- AC 50/60Hz
- Industrial Relays - Coil resistance at 20 °C in Ω
- 3770
- Industrial Relays - Coil operating range max. (at 55°C)
- 132
- Industrial Relays - Coil operating range min. (at 20°C)
- 96
- Industrial Relays - Options
- With light indicator (LED)
- Industrial Relays - Number and type of contacts
- DPDT
- Industrial Relays - Contact material
- AgNi
- Industrial Relays - Rated / max. switching voltage AC
- 250 V / 440 V
- Industrial Relays - Min. switching voltage
- 5 V
- Industrial Relays - Rated load (capacity) AC1
- 12 A / 250 V AC
- Industrial Relays - Rated load (capacity) DC1
- 12 A / 30 V DC
- Industrial Relays - Min. switching current
- 5 mA
- Industrial Relays - Max. inrush current
- 20 A
- Industrial Relays - Rated current
- 12A
- Industrial Relays - Max. breaking capacity AC1
- 3000 VA
- Industrial Relays - Min. breaking capacity
- 0.3 W
- Industrial Relays - Contact resistance
- ≤ 100 mΩ
- Industrial Relays - Max. operating frequency at rated load AC1
- 1200 cycles/hour
- Industrial Relays - Max. operating frequency - No load
- 18000 cycles/hour
- Industrial Relays - Rated voltage 50/60 Hz
- AC: 6 ... 240 V, DC: 5 ... 220 V
- Industrial Relays - Must release voltage
- AC: ≥ 0.2 Un; DC: ≥ 0.1 Un
- Industrial Relays - Rated power consumption
- AC: 1.6 VA, DC: 0.9 W
- Industrial Relays - Insulation rated voltage
- 250 V AC
- Industrial Relays - Rated surge voltage
- 4000 V 1.2 / 50 µs
- Industrial Relays - Overvoltage category
- III
- Industrial Relays - Insulation pollution degree
- 3
- Industrial Relays - Dielectric strength between coil and contacts
- 2500 V AC type of insulation: basic
- Industrial Relays - Dielectric strength contact clearance
- 1000 V AC type of clearance: micro-disconnection
- Industrial Relays - Dielectric strength pole - pole
- 2500 V AC type of insulation: basic
- Industrial Relays - Contact - Coil distance Clearance
- ≥ 2.6 mm
- Industrial Relays - Contact - Coil distance Creepage
- ≥ 4 mm
- Industrial Relays - Operating / release time (Typical)
- 15 ms / 10 ms
- Industrial Relays - Electrical life- resistive AC1
- greater than 10^5; 12 A. 250 V AC
- Industrial Relays - Mechanical life (cycles)
- greater than 10⁷
- Industrial Relays - Dimensions (L x W x H)
- 27.5 x 21.1 x 34.5 mm
- Industrial Relays - Weight
- 35 g
- Industrial Relays - Storage Temperature
- -40...+70 °C
- Industrial Relays - Operating Temperature
- -40...+55 °C
- Industrial Relays - Protection Category
- IP 40 PN-EN 60529
- Industrial Relays - Shock resistance (NO/NC)
- 10 g
- Industrial Relays - Vibration resistance
- 5 g 10...150 Hz
- Industrial Relays - Relay Type
- RY2
Datos del producto
- Marca
- Altech
- Número de parte
- RY2-2012-26-5120-L
- Categoría
- Relevadores de estado sólido
- Precio y entrega
- Por cotización
