AltechDistribuidor autorizado
RUC-2022-26-1024

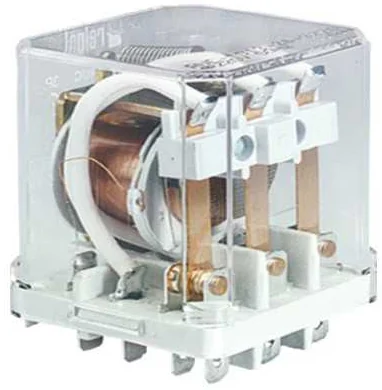

DPST(2NO), 16A Industrial Electromagnetic RelayRUC DPST(2NO) DC Coil, Industrial Electromagnetic Relay Standard Features: Relays of general application For plug-in sockets, 35 mm rail mount or on panel mounting Cadmium-free contacts R2M and RUC also for PCB and soldering connections AC and DC coils available DATA Sheet Link
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Industrial Relays - Coil Voltage (V)
- 24
- Industrial Relays - Coil Type
- DC
- Industrial Relays - Coil resistance at 20 °C in Ω
- 430
- Industrial Relays - Coil operating range max. (at 55°C)
- 26.4
- Industrial Relays - Coil operating range min. (at 20°C)
- 19.2
- Industrial Relays - Options
- Without additional features
- Industrial Relays - Number and type of contacts
- DPST (2NO)
- Industrial Relays - Contact material
- AgNi
- Industrial Relays - Rated / max. switching voltage AC
- 400 V / 440 V
- Industrial Relays - Min. switching voltage
- 5 V
- Industrial Relays - Rated load (capacity) AC1
- 16 A / 250 V AC or 10 A / 400 V AC
- Industrial Relays - Rated load (capacity) DC1
- 16 A / 24 V DC
- Industrial Relays - Min. switching current
- 5 mA
- Industrial Relays - Max. inrush current
- 40 A
- Industrial Relays - Rated current
- 16A
- Industrial Relays - Max. breaking capacity AC1
- 4000 VA
- Industrial Relays - Min. breaking capacity
- 0.3 W
- Industrial Relays - Contact resistance
- ≤ 100 mΩ
- Industrial Relays - Max. operating frequency at rated load AC1
- 1200 cycles/hour
- Industrial Relays - Max. operating frequency - No load
- 12000 cycles/hour
- Industrial Relays - Rated voltage 50/60 Hz
- AC: 6 ... 240 V, DC: 6 ... 220 V
- Industrial Relays - Must release voltage
- AC: ≥ 0.15 Un; DC: ≥ 0.1 Un
- Industrial Relays - Rated power consumption
- AC: 2.8 VA 50 Hz; 2.5 VA 60 Hz, DC: 1.5 W; 1.7 W with contact gap ≥ 3 mm
- Industrial Relays - Insulation rated voltage
- 400 V AC
- Industrial Relays - Rated surge voltage
- 4000 V 1.2 / 50 µs
- Industrial Relays - Overvoltage category
- III
- Industrial Relays - Insulation pollution degree
- 3
- Industrial Relays - Dielectric strength between coil and contacts
- 2500 V AC type of insulation: basic
- Industrial Relays - Dielectric strength contact clearance
- 1500 V AC type of clearance: micro-disconnection, 2500 V AC with contact gap ≥ 3 mm. type of clearance: full-disconnection
- Industrial Relays - Dielectric strength pole - pole
- 2500 V AC type of insulation: basic
- Industrial Relays - Contact - Coil distance Clearance
- ≥ 5 mm
- Industrial Relays - Contact - Coil distance Creepage
- ≥ 8 mm
- Industrial Relays - Operating / release time (Typical)
- 20 ms / 15 ms
- Industrial Relays - Electrical life- resistive AC1
- greater than 10^5; 16 A. 250 V AC; greater than 10^5; 10 A. 400 V AC
- Industrial Relays - Mechanical life (cycles)
- greater than 10⁷
- Industrial Relays - Motor load according to UL 508
- DPDT: 1/3 HP 120 V AC. single-phase motor, 1/2 HP 240 V AC single-phase motor. 3PDT: 1/3 HP 120 V AC. single-phase motor 1/2 HP 240 V AC. single-phase motor. 3PDT: 1/2 HP 240 V AC. three-phase motor
- Industrial Relays - Dimensions (L x W x H)
- 36.1 x 38.6 x 45.5 mm
- Industrial Relays - Weight
- 80 g
- Industrial Relays - Storage Temperature
- -40...+85 °C
- Industrial Relays - Operating Temperature
- AC: -40...+55 °C 3PDT. 3PST (NO) /16 A (+70 °C DPDT. DPST (NO) / 16 A), DC: -40...+55 °C 3PDT. 3PST (NO) /16 A (+70 °C 3PDT. 3PST (NO) /10 A; DPDT. DPST (NO) / 16 A)
- Industrial Relays - Protection Category
- IP 00 PN-EN 60529
- Industrial Relays - Shock resistance (NO/NC)
- 10 g
- Industrial Relays - Vibration resistance
- 5 g 10...150 Hz
- Industrial Relays - Solder bath temperature
- max. 270 °C
- Industrial Relays - Soldering time
- max. 5 s
- Industrial Relays - Relay Type
- RUC
Datos del producto
- Marca
- Altech
- Número de parte
- RUC-2022-26-1024
- Categoría
- Relevadores de estado sólido
- Precio y entrega
- Por cotización
