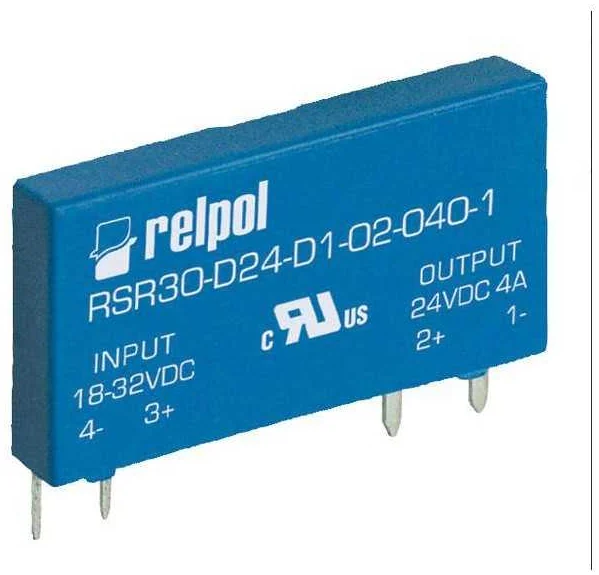

RSR30-D48-D1-02-040-1
Slimline Interface Relay, 48V DC, DC Load - 4A / 24VRSR30 Slimline Interface Relay, 48V DC, DC Load - 4A / 24V Standard Features PIR6W-1PS Optically isolated Low on-state resistance Low input power consumption TTL and CMOS compatible RC networks (V AC) MOSFET output thyristor (V DC) Applications: household appliances, temperature control system, industrial automatic control, light system, office appliances, factory appliances Mounting: relays RSR30 are designed for direct PCB mounting, single in line package DATA Sheet Link
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Industrial Relays - Dimensions (L x W x H)
- 28 x 5 x 15 mm
- Industrial Relays - Weight
- 4 g
- Industrial Relays - Storage Temperature
- -25...+100°C
- Industrial Relays - Operating Temperature
- -20...+80 °C rated value: +55 °C
- Industrial Relays - Nominal Voltage V DC
- 48
- Industrial Relays - Control voltage range V DC
- 38...58
- Industrial Relays - Max. control current mA
- 4.4
- Industrial Relays - Release voltage V DC
- 8.3
- Industrial Relays - Input resistance kΩ
- 10.8
- Industrial Relays - Nominal load current
- 2 A DC
- Industrial Relays - Max. load current
- 4 A DC
- Industrial Relays - Nominal load voltage
- rest condition: 24 V DC
- Industrial Relays - Load voltage range
- 0...32 V DC
- Industrial Relays - Non-repetitive peak voltage
- rest condition: 60 V DC
- Industrial Relays - Non-repetitive surge current
- operating state: 6 A
- Industrial Relays - Max. on-state voltage drop
- operating state: 0.24 V
- Industrial Relays - Min. load current
- operating state: 1 mA
- Industrial Relays - Operation resistance
- operating state: 120 mΩ
- Industrial Relays - Peak power dissipation
- 600 W
- Industrial Relays - Operating switching frequency
- 10 Hz
- Industrial Relays - Transient voltage suppressor
- Yes
- Industrial Relays - Max voltage of suppressor operation
- 36 V DC
- Industrial Relays - Output circuit switching moment
- R - instantaneous switching of the output circuit
- Industrial Relays - Max. turn-on time
- 50 μs at rated voltage
- Industrial Relays - Max. turn-off time
- 600 μs at rated voltage
- Industrial Relays - Insulation dielectric strength
- Between input and output: 3 750 V AC 1 minute
- Industrial Relays - Max. solder bath temperature
- 220 °C 10 s
- Industrial Relays - Max. off-state leakage current (rest condition)
- 1 mA
- Industrial Relays - Relay Type
- RSR30
Datos del producto
- Marca
- Altech
- Número de parte
- RSR30-D48-D1-02-040-1
- Categoría
- Relevadores de estado sólido
- Precio y entrega
- Por cotización
