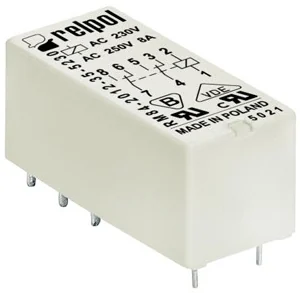

RM84-2012-35-1024
DPDT, 8A Miniature Electromagnetic RelayR84 DPDT DC Coil, Miniature Electromagnetic Relay Standard Features Miniature dimensions Cadmium - free contacts 5000 V / 10 mm reinforced insulation For PCB and plug-in sockets Available special versions with the increased dielectric strength of the contact clearance IP67 flux proof, water proof and sealed cover protection (For IP40 unsealed, contact Altech) DATA Sheet Link
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Industrial Relays - Coil Voltage (V)
- 24
- Industrial Relays - Coil Type
- DC
- Industrial Relays - Coil resistance at 20 °C in Ω
- 1440
- Industrial Relays - Coil operating range max. (at 55°C)
- 61.2
- Industrial Relays - Coil operating range min. (at 20°C)
- 16.8
- Industrial Relays - Number and type of contacts
- DPDT
- Industrial Relays - Contact material
- AgNi
- Industrial Relays - Rated / max. switching voltage AC
- 250 V / 440 V
- Industrial Relays - Min. switching voltage
- 5 V
- Industrial Relays - Rated load (capacity) AC1
- 8 A / 250 V AC
- Industrial Relays - Rated load (capacity) AC15
- 3 A / 120 V; 1.5 A / 240 V (B300)
- Industrial Relays - Rated load (capacity) AC3
- 550 W (single-phase motor)
- Industrial Relays - Rated load (capacity) DC1
- 8 A / 24 V DC
- Industrial Relays - Rated load (capacity) DC13
- 0.22 A / 120 V; 0.1 A / 250 V (R300)
- Industrial Relays - Min. switching current
- 5 mA
- Industrial Relays - Max. inrush current
- 12 A
- Industrial Relays - Rated current
- 8A
- Industrial Relays - Max. breaking capacity AC1
- 2000 VA
- Industrial Relays - Min. breaking capacity
- 0.3 W
- Industrial Relays - Contact resistance
- ≤ 100 mΩ
- Industrial Relays - Max. operating frequency at rated load AC1
- 600 cycles/hour
- Industrial Relays - Max. operating frequency - No load
- 72000 cycles/hour
- Industrial Relays - Must release voltage
- AC: ≥ 0.15 Un; DC: ≥ 0.1 Un
- Industrial Relays - Rated power consumption
- AC: 0.75 VA, DC: 0.4 ... 0.48 W
- Industrial Relays - Insulation rated voltage
- 400 V AC
- Industrial Relays - Rated surge voltage
- 4000 V 1.2 / 50 µs
- Industrial Relays - Overvoltage category
- III
- Industrial Relays - Insulation pollution degree
- 3
- Industrial Relays - Dielectric strength between coil and contacts
- 5000 V AC type of insulation: reinforced
- Industrial Relays - Dielectric strength contact clearance
- 1000 V AC type of clearance: micro-disconnection 2000 V AC contacts DPST (2NO). type of clearance: full-disconnect
- Industrial Relays - Dielectric strength pole - pole
- 2500 V AC type of insulation: basic
- Industrial Relays - Contact - Coil distance Clearance
- ≥ 10 mm
- Industrial Relays - Contact - Coil distance Creepage
- ≥ 10 mm
- Industrial Relays - Operating / release time (Typical)
- 7ms / 3ms
- Industrial Relays - Electrical life- resistive AC1
- greater than 10^5; 8 A. 250 V AC
- Industrial Relays - Electrical life- DC L/R equals 40 ms
- greater than 10^5; 0.15A. 220VDC
- Industrial Relays - Mechanical life (cycles)
- greater than 3 x 10⁷
- Industrial Relays - Dimensions (L x W x H)
- 29x12.7x15.7mm
- Industrial Relays - Weight
- 14 g
- Industrial Relays - Storage Temperature
- -40...+85 °C
- Industrial Relays - Operating Temperature
- AC: -40...+70 °C DC: -40...+85 °C
- Industrial Relays - Protection Category
- IP 67 PN-EN 60529
- Industrial Relays - Environmental Protection
- RTIII PN-EN 116000-3
- Industrial Relays - Shock resistance (NO/NC)
- 20 g
- Industrial Relays - Vibration resistance
- 10g/5g 10...150Hz
- Industrial Relays - Solder bath temperature
- max. 270 °C
- Industrial Relays - Soldering time
- max. 5 s
- Industrial Relays - Relay Type
- RM84
Datos del producto
- Marca
- Altech
- Número de parte
- RM84-2012-35-1024
- Categoría
- Relevadores de estado sólido
- Precio y entrega
- Por cotización
