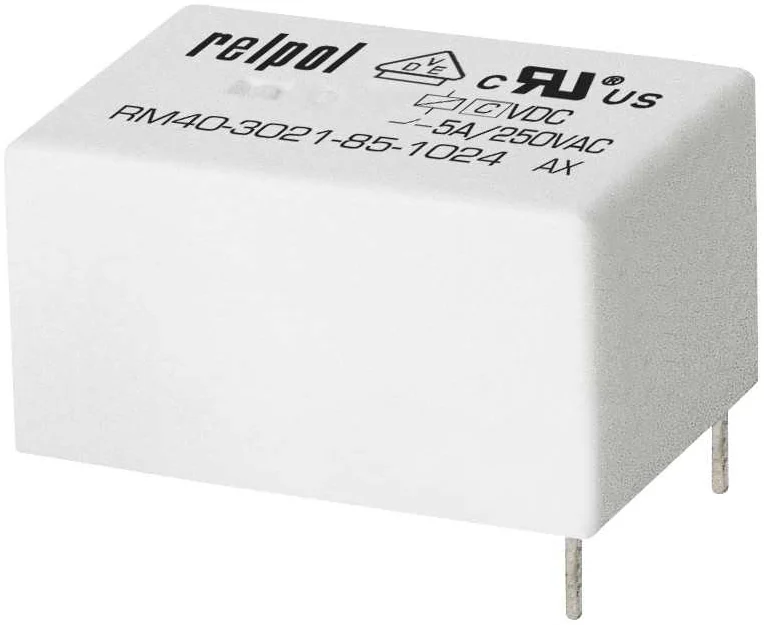

RM40-3021-85-1024
SPST(1NO), 8A Miniature Electromagnetic RelayR40 SPST(1NO) DC Coil, Miniature Electromagnetic Relay Standard Features Very small dimensions High switching capacity up to 8 A Cover with enhanced sealing protects the relay in course of soldering and cleaning Applications: for household equipment, office machines, control devices, alarm systems, in industrial control, industrial controllers Recognitions, certifications, directives: RoHS DATA Sheet Link
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Industrial Relays - Coil Voltage (V)
- 24
- Industrial Relays - Coil Type
- DC
- Industrial Relays - Coil resistance at 20 °C in Ω
- 2880
- Industrial Relays - Coil operating range max. (at 55°C)
- 36
- Industrial Relays - Coil operating range min. (at 20°C)
- 18
- Industrial Relays - Number and type of contacts
- SPST (1NO)
- Industrial Relays - Contact material
- AgSnO2
- Industrial Relays - Rated / max. switching voltage AC
- 250 V / 440 V
- Industrial Relays - Min. switching voltage
- 5 V AgSnO2
- Industrial Relays - Rated load (capacity) AC1
- 8 A / 250 V AC
- Industrial Relays - Rated load (capacity) DC1
- 8 A / 30 V DC
- Industrial Relays - Min. switching current
- 10 mA AgSnO2
- Industrial Relays - Rated current
- 8A
- Industrial Relays - Max. breaking capacity AC1
- 2000 VA
- Industrial Relays - Min. breaking capacity
- 50 mW AgSnO2
- Industrial Relays - Contact resistance
- ≤ 100 mΩ
- Industrial Relays - Must release voltage
- DC: ≥ 0.05 Un
- Industrial Relays - Rated power consumption
- DC: 0.20 W
- Industrial Relays - Dielectric strength between coil and contacts
- 4000 V AC type of insulation: reinforced
- Industrial Relays - Dielectric strength contact clearance
- 1000 V AC type of clearance: micro-disconnection
- Industrial Relays - Contact - Coil distance Clearance
- ≥ 5 mm
- Industrial Relays - Contact - Coil distance Creepage
- ≥ 5 mm
- Industrial Relays - Operating / release time (Typical)
- 8 ms / 4 ms
- Industrial Relays - Electrical life- resistive AC1
- 360 cycles/hour: greater than 10^5; 8 A, 250 V AC
- Industrial Relays - Electrical life- resistive DC1
- 1800 cycles/hour: greater than 10^5; 8 A, 30 V DC
- Industrial Relays - Mechanical life (cycles)
- 18 000 cycles/hour: greater than 10^7
- Industrial Relays - Dimensions (L x W x H)
- 20 x 10 x 10.5 mm
- Industrial Relays - Weight
- 6 g
- Industrial Relays - Operating Temperature
- -40...+85 °C
- Industrial Relays - Protection Category
- IP 64 PN-EN 60529
- Industrial Relays - Shock resistance (NO/NC)
- 10 g
- Industrial Relays - Vibration resistance
- 1.5 mm DA (constant amplitude) 10...55 Hz
- Industrial Relays - Solder bath temperature
- max. 235 °C
- Industrial Relays - Soldering time
- max. 5 s
- Industrial Relays - Relay Type
- RM40
Datos del producto
- Marca
- Altech
- Número de parte
- RM40-3021-85-1024
- Categoría
- Medición y monitoreo
- Precio y entrega
- Por cotización
