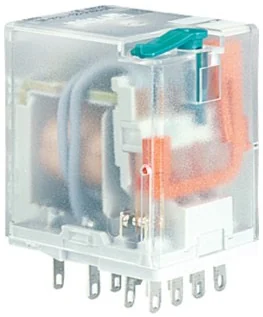

R4N-2014-23-1012-WTL
4PDT, 6A Industrial Electromagnetic RelayR4 DPDT DC Coil, Industrial Electromagnetic Relay Standard Features: Compact size Relays of general application Cadmium - free contacts AC and DC coils For plug-in sockets, 35 mm rail mount or on panel mounting WT (mechanical indicator + lockable front test button) - standard features of relays for plug-in sockets. Relays may be provided with the test buttons (no latching) and plugs (see data sheet page 115) AUCOTEAM GmbH Berlin - railway standards. DATA Sheet Link
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Industrial Relays - Coil Voltage (V)
- 12
- Industrial Relays - Coil Type
- DC
- Industrial Relays - Coil resistance at 20 °C in Ω
- 160
- Industrial Relays - Coil operating range max. (at 55°C)
- 13.2
- Industrial Relays - Coil operating range min. (at 20°C)
- 9.6
- Industrial Relays - Options
- With mechanical indicator + lockable front test button + light indicator (LED)
- Industrial Relays - Number and type of contacts
- 4PDT
- Industrial Relays - Contact material
- AgNi
- Industrial Relays - Rated / max. switching voltage AC
- 250 V / 250 V
- Industrial Relays - Min. switching voltage
- 10 V
- Industrial Relays - Rated load (capacity) AC1
- 6 A / 250 V AC
- Industrial Relays - Rated load (capacity) AC15
- 1.5 A / 120 V; 0.75 A / 240 V (C300)
- Industrial Relays - Rated load (capacity) AC3
- 125 W (single-phase motor)
- Industrial Relays - Rated load (capacity) DC1
- 6 A / 24 V DC
- Industrial Relays - Rated load (capacity) DC13
- 0.22 A / 120 V; 0.1 A / 250 V (R300)
- Industrial Relays - Min. switching current
- 5 mA
- Industrial Relays - Max. inrush current
- 12 A
- Industrial Relays - Rated current
- 6A
- Industrial Relays - Max. breaking capacity AC1
- 1500 VA
- Industrial Relays - Min. breaking capacity
- 0.3 W
- Industrial Relays - Contact resistance
- ≤ 100 mΩ
- Industrial Relays - Max. operating frequency at rated load AC1
- 1200 cycles/hour
- Industrial Relays - Max. operating frequency - No load
- 18000 cycles/hour
- Industrial Relays - Rated voltage 50/60 Hz
- AC: 6 ... 240 V, DC: 5 ... 220 V
- Industrial Relays - Must release voltage
- AC: ≥ 0.2 Un; DC: ≥ 0.1 Un
- Industrial Relays - Rated power consumption
- AC: 1.6 VA, DC: 0.9 W
- Industrial Relays - Insulation rated voltage
- 250 V AC
- Industrial Relays - Rated surge voltage
- 2500 V 1.2 / 50 µs
- Industrial Relays - Overvoltage category
- III
- Industrial Relays - Insulation pollution degree
- 2
- Industrial Relays - Dielectric strength between coil and contacts
- 2500 V AC type of insulation: basic
- Industrial Relays - Dielectric strength contact clearance
- 1500 V AC type of clearance: micro-disco
- Industrial Relays - Dielectric strength pole - pole
- 2500 V AC type of insulation: basic
- Industrial Relays - Contact - Coil distance Clearance
- ≥ 1.6 mm
- Industrial Relays - Contact - Coil distance Creepage
- ≥ 3.2 mm
- Industrial Relays - Operating / release time (Typical)
- AC: 10 ms / 8 ms; DC: 13 ms / 3 ms
- Industrial Relays - Electrical life- resistive AC1
- greater than 10^5; 6 A. 250 V AC
- Industrial Relays - Mechanical life (cycles)
- greater than 2 x 10⁷
- Industrial Relays - Dimensions (L x W x H)
- 27.5 x 21.2 x 35.6 mm
- Industrial Relays - Weight
- 35 g
- Industrial Relays - Storage Temperature
- -40...+85 °C
- Industrial Relays - Operating Temperature
- AC: -40...+55 °C; DC: -40...+70 °C
- Industrial Relays - Protection Category
- IP 40 PN-EN 60529
- Industrial Relays - Environmental Protection
- RTI PN-EN 116000-3
- Industrial Relays - Shock resistance (NO/NC)
- 10 g / 5 g
- Industrial Relays - Vibration resistance
- 5 g 10...150 Hz
- Industrial Relays - Solder bath temperature
- max. 270 °C
- Industrial Relays - Soldering time
- max. 5 s
- Industrial Relays - Relay Type
- R4
Datos del producto
- Marca
- Altech
- Número de parte
- R4N-2014-23-1012-WTL
- Categoría
- Relevadores de estado sólido
- Precio y entrega
- Por cotización
