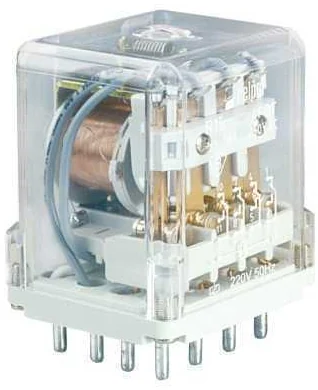

4PDT, 10A Industrial Electromagnetic RelayR15 4PDT AC 50Hz Coil, Industrial Electromagnetic Relay Standard Features: Contacts AgNi For plug-in sockets, 35 mm rail mount or on panel mounting. Cadmium-free contacts-R15 DPDT, R15 3PDT, R15 4PDT relays WT (mechanical indicator and lockable front test button) - standard features of R15 DPDT, R15 3DPT relays in cover, for plug-in sockets. Relays may be provided with the test buttons (no latching) and plugs (see catalog page 115). AUCOTEAM, GmbH Berlin - railway standards. DATA Sheet Link
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Industrial Relays - Coil Voltage (V)
- 24
- Industrial Relays - Coil Type
- AC 50Hz
- Industrial Relays - Coil resistance at 20 °C in Ω
- 72
- Industrial Relays - Coil operating range max. (at 55°C)
- 26.4
- Industrial Relays - Coil operating range min. (at 20°C)
- 19.2
- Industrial Relays - Options
- With mechanical indicator + lockable front test button
- Industrial Relays - Number and type of contacts
- 4PDT
- Industrial Relays - Contact material
- AgCdO
- Industrial Relays - Rated / max. switching voltage AC
- 250 V / 440 V
- Industrial Relays - Min. switching voltage
- 10 V
- Industrial Relays - Rated load (capacity) AC1
- 10 A / 250V AC; 10 A / 277V AC UL508
- Industrial Relays - Rated load (capacity) AC15
- 3 A / 120 V; 1.5 A / 240 V (B300)
- Industrial Relays - Rated load (capacity) AC3
- 370 W (single-phase motor. 1/2HP/240VAC UL508)
- Industrial Relays - Rated load (capacity) DC1
- 10 A / 24 V DC
- Industrial Relays - Rated load (capacity) DC13
- 0.22 A / 120 V; 0.1 A / 250 V (R300)
- Industrial Relays - Min. switching current
- 10 mA
- Industrial Relays - Max. inrush current
- 20 A
- Industrial Relays - Rated current
- 10A
- Industrial Relays - Max. breaking capacity AC1
- 2500 VA
- Industrial Relays - Min. breaking capacity
- 0.5 W
- Industrial Relays - Contact resistance
- ≤ 100 mΩ
- Industrial Relays - Max. operating frequency at rated load AC1
- 1200 cycles/hour
- Industrial Relays - Max. operating frequency - No load
- 12000 cycles/hour
- Industrial Relays - Rated voltage 50/60 Hz
- AC: 6 ... 240 V, DC: 6 ... 220 V
- Industrial Relays - Must release voltage
- AC: ≥ 0.15 Un; DC: ≥ 0.1 Un
- Industrial Relays - Rated power consumption
- AC: 2.8 VA 50Hz; 2.5 VA 60Hz; DC: 1.5 W
- Industrial Relays - Insulation rated voltage
- 250 V AC
- Industrial Relays - Rated surge voltage
- 2500 V 1.2 / 50 µs
- Industrial Relays - Overvoltage category
- III
- Industrial Relays - Insulation pollution degree
- 3
- Industrial Relays - Dielectric strength between coil and contacts
- 2500 V AC type of insulation: basic
- Industrial Relays - Dielectric strength contact clearance
- 1500 V AC type of clearance: micro-disco
- Industrial Relays - Dielectric strength pole - pole
- 2000 V AC type of insulation: basic
- Industrial Relays - Contact - Coil distance Clearance
- ≥ 3 mm
- Industrial Relays - Contact - Coil distance Creepage
- ≥ 3.2 mm
- Industrial Relays - Operating / release time (Typical)
- AC: 12 ms / 10 ms; DC: 18 ms / 7 ms
- Industrial Relays - Electrical life- resistive AC1
- greater than 2 x 10^5; 10 A. 250 V AC
- Industrial Relays - Mechanical life (cycles)
- greater than 2 x 10⁷
- Industrial Relays - Dimensions (L x W x H)
- 35 x 42.5 x 54.5 mm
- Industrial Relays - Weight
- 95 g
- Industrial Relays - Storage Temperature
- -40...+85 °C
- Industrial Relays - Operating Temperature
- AC: -40...+55 °C; DC: -40...+70 °C
- Industrial Relays - Protection Category
- IP 40 PN-EN 60529
- Industrial Relays - Environmental Protection
- RTI PN-EN 116000-3
- Industrial Relays - Shock resistance (NO/NC)
- 10 g
- Industrial Relays - Vibration resistance
- 5 g 10...150 Hz
- Industrial Relays - Solder bath temperature
- max. 270 °C
- Industrial Relays - Soldering time
- max. 5 s
- Industrial Relays - Relay Type
- R15
