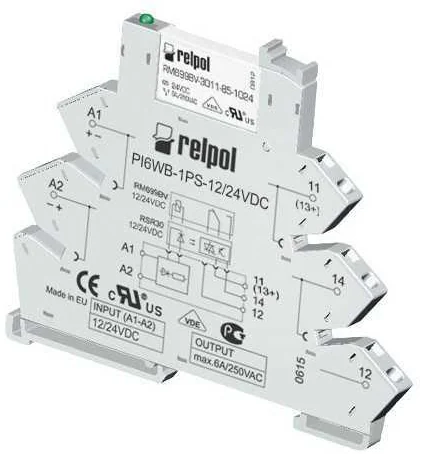

PIR6WB-1PS-36VDC-R
SPDT(R), 6A, Subminiature Electromagnetic RelayPIR6WB-1PS Subminiature Electromagnetic Relay Featuring Electromagnetic Relay RM699BV / 6A; 250VAC / 24VDC Standard Features Spring Clamp Terminals Electronic spring terminals socket (PI6W-1PS) Electromagnetic relay (RM699BV) or solid-state relay (RSR30) Width 6.2 mm Equipped with green LED DATA Sheet Link
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Industrial Relays - Number and type of contacts
- SPDT (R)
- Industrial Relays - Contact material
- AgSnO2
- Industrial Relays - Rated / max. switching voltage AC
- 400 V AC / 250 V DC
- Industrial Relays - Min. switching voltage
- 10 V
- Industrial Relays - Rated load (capacity) AC1
- 6 A / 250 V AC
- Industrial Relays - Rated load (capacity) DC1
- 6 A / 24 V DC; 0.15 A / 250 V DC
- Industrial Relays - Min. switching current
- 100 mA
- Industrial Relays - Max. inrush current
- 10 A 20 ms
- Industrial Relays - Rated current
- 6A
- Industrial Relays - Max. breaking capacity AC1
- 1500 VA
- Industrial Relays - Min. breaking capacity
- 1 W
- Industrial Relays - Contact resistance
- ≤ 100 mΩ 100 mA. 24 V
- Industrial Relays - Max. operating frequency at rated load AC1
- 360 cycles/hour
- Industrial Relays - Max. operating frequency - No load
- 72000 cycles/hour
- Industrial Relays - Must release voltage
- AC: ≥ 0.2 Un; DC: ≥ 0.1 Un
- Industrial Relays - Rated power consumption
- DC: 0.2 ... 0.5 W, AC/DC: 0.5...1.2VA/0.4...1.2W
- Industrial Relays - Insulation rated voltage
- 250 V AC
- Industrial Relays - Rated surge voltage
- 4000 V 1.2 / 50 µs
- Industrial Relays - Overvoltage category
- III
- Industrial Relays - Insulation pollution degree
- 3
- Industrial Relays - Dielectric strength contact clearance
- 1000 V AC 50/60 Hz. 1 min.. output R and R-01
- Industrial Relays - Operating time (typical value)
- DC: 8 ms AC/DC: 20 ms
- Industrial Relays - Release time (typical value)
- DC: 10 ms AC/DC: 25 ms
- Industrial Relays - Electrical life- resistive AC1
- 0.5 x 10^5; 6 A. 250 V AC
- Industrial Relays - Mechanical life (cycles)
- greater than 10⁷
- Industrial Relays - Dimensions (L x W x H)
- 98.5 x 6.2 x 84.6 mm
- Industrial Relays - Weight
- 55 g
- Industrial Relays - Storage Temperature
- -40...+70 °C
- Industrial Relays - Operating Temperature
- -40...+55 °C
- Industrial Relays - Protection Category
- IP 20 PN-EN 60529
- Industrial Relays - Environmental Protection
- RTI PN-EN 116000-3
- Industrial Relays - Shock resistance (NO/NC)
- 10 g
- Industrial Relays - Vibration resistance
- 5 g 10...500 Hz
- Industrial Relays - Rated input voltage Un
- 36 V DC
- Industrial Relays - Power of input circuit
- 0.3 W
- Industrial Relays - Socket code
- PI6WB-1PS-36VDC
- Industrial Relays - Operational Relay Code
- RM699BV-3011-85-1024
- Industrial Relays - Rated Voltage of Operational Relay Us
- 24 V DC
- Industrial Relays - Dielectric strength Input - output
- 6000 V 1.2 / 50 μs
- Industrial Relays - Dielectric strength Input - output (type of insulation: reinforced)
- 4000 V AC 50/60 Hz. 1 min..
- Industrial Relays - Input - output distance clearance / creepage
- ≥ 6 mm / ≥ 8 mm
- Industrial Relays - Operating range of supply voltage
- 0.8...1.2 Un; 0.85...1.2 Un 6 V DC
- Industrial Relays - Must operate voltage
- ≤ 0.8 Un; ≤ 0.85 Un 6 V DC
- Industrial Relays - Relay Type
- PIR6WB-1PS
Datos del producto
- Marca
- Altech
- Número de parte
- PIR6WB-1PS-36VDC-R
- Categoría
- Relevadores de estado sólido
- Precio y entrega
- Por cotización
