PIR4-110DC-00LD

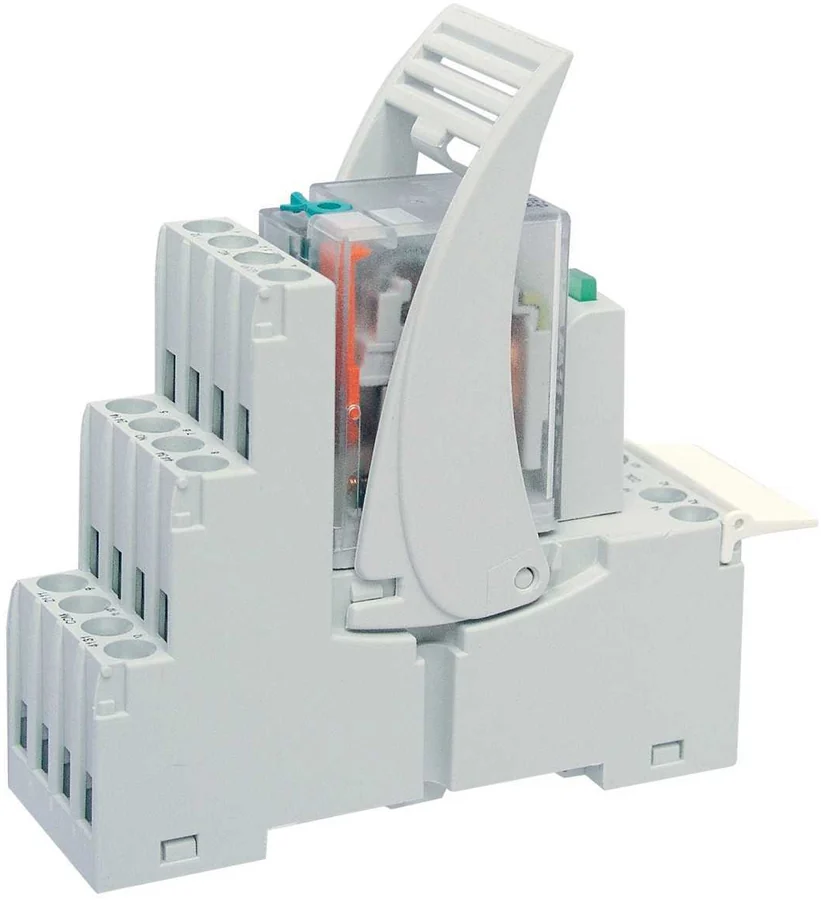

GZM4 Socket, PIR4 Interface RelayPIR4 Interface Relay GZM4 Socket - PIR4 4PDT DC Coil Standard Features Interface relay PIR4 with socket GZM4, designed for continuous operation, consists of: electromagnetic relay R4N, grey plug-in socket GZM4, signalling / protecting module type M..., retainer / retractor clip GZT4-0040 (plastic), white description plate GZT4-0035 Pre-assembled relay and socket combination simplifies installation and maintenance Compact industrial design helps conserve panel space DPDT relay with cadmium-free c
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Industrial Relays - Coil Voltage (V)
- 110
- Industrial Relays - Coil Type
- DC
- Industrial Relays - Coil resistance at 20 °C in Ω
- 13600
- Industrial Relays - Coil operating range max. (at 55°C)
- 121
- Industrial Relays - Coil operating range min. (at 20°C)
- 88
- Industrial Relays - Type of Module
- M43G
- Industrial Relays - Current
- 6A
- Industrial Relays - Voltage
- 250V AC / 24V DC
- Industrial Relays - Wire Range
- 2.5 mm2 / 24-14 AWG
- Industrial Relays - Torque
- 0.7 Nm
- Industrial Relays - Relay Type
- PIR4
Datos del producto
- Marca
- Altech
- Número de parte
- PIR4-110DC-00LD
- Categoría
- Relevadores de estado sólido
