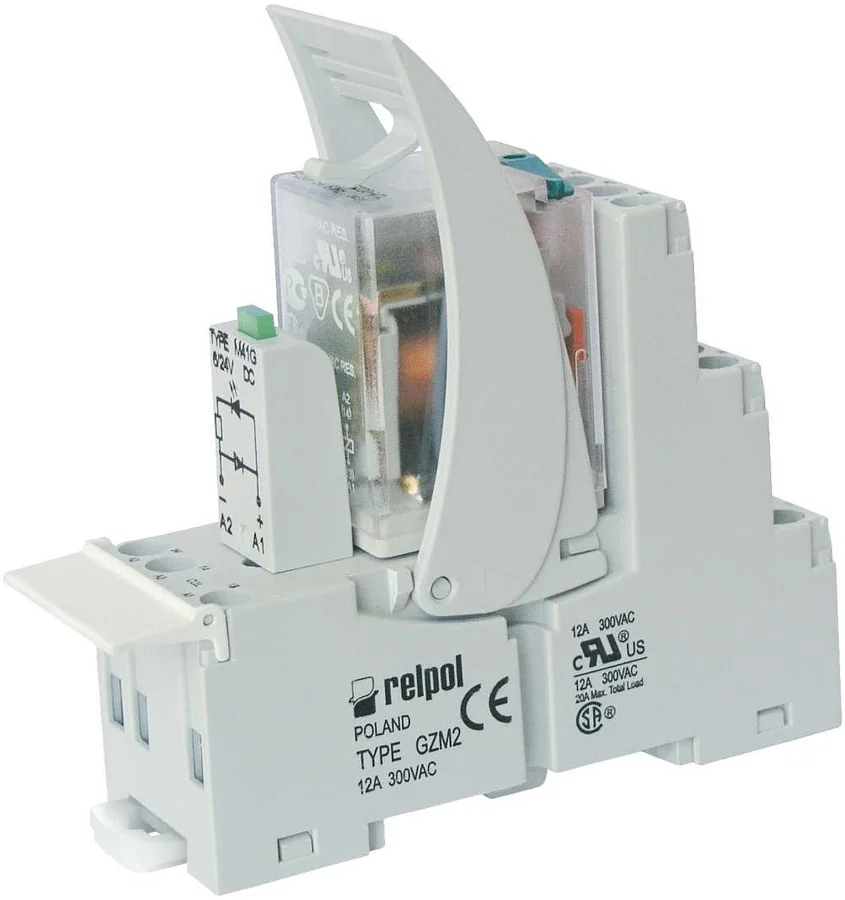

PIR2-024DC-00LD
GZM2 Socket, PIR2 Interface RelayPIR2 Interface Relay GZM2 Socket - PIR2 DPDT DC Coil Standard Features Interface relay PIR2 with socket GZM2, designed for continuous operation, consists of: electromagnetic relay R2N, grey plug-in socket GZM2, signalling / protecting module type M..., retainer / retractor clip GZT4-0040 (plastic), white description plate GZT4-0035 Pre-assembled relay and socket combination simplifies installation and maintenance Compact industrial design helps conserve panel space DPDT relay with cadmium-free c
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Industrial Relays - Coil Voltage (V)
- 24
- Industrial Relays - Coil Type
- DC
- Industrial Relays - Coil resistance at 20 °C in Ω
- 640
- Industrial Relays - Coil operating range max. (at 55°C)
- 26.4
- Industrial Relays - Coil operating range min. (at 20°C)
- 19.2
- Industrial Relays - Type of Module
- M41G
- Industrial Relays - Current
- 12A
- Industrial Relays - Voltage
- 250V AC / 24V DC
- Industrial Relays - Wire Range
- 2.5 mm2 / 24-14 AWG
- Industrial Relays - Torque
- 0.7 Nm
- Industrial Relays - Relay Type
- PIR2
Datos del producto
- Marca
- Altech
- Número de parte
- PIR2-024DC-00LD
- Categoría
- Relevadores de estado sólido
- Precio y entrega
- Por cotización
