PID330-0-0-01-CU

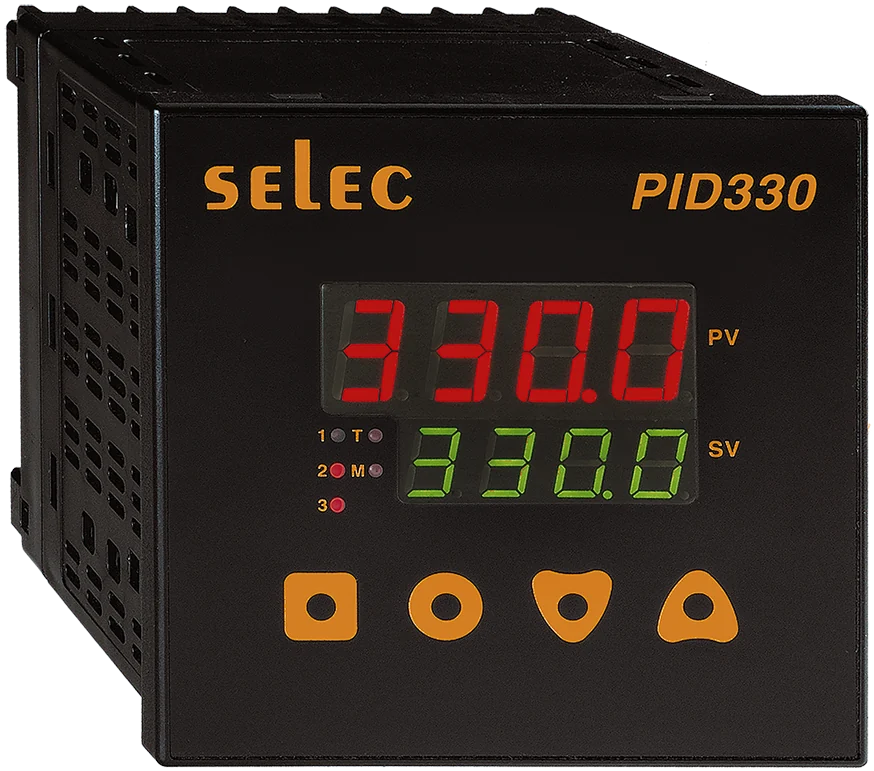

Advanced Dual Display, 3 Outputs Temperature ControllersPID330-0-0-01-CU - Advanced Dual Display, 3 Outputs Temperature Controllers 7 Segment LED Display Features • 4 + 4 digits , 7 segment LED dual display • TC / RTD Input, Analog input • ON-OFF, PID • Heat Cool PID • °C / °F • Ramp Soak • Soft Start • RS485 Communication (PID500 only) DATA Sheet Link < Product photo may vary depending on part number selection.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Process Controllers - Supply Voltage
- 85-270V AC/DC
- Process Contollers - Input Voltage
- 85-270V AC/DC (50/60Hz)
- Process Controllers - Input Measurement
- Thermocouple (J,K,T,R,S,C,E,B,N,L,U,W, Platinel II) / RTD (Pt100) Signal Inputs (-5 to 56mV, 0 to 10V, 0 to 20mA)
- Process Controllers - Main Output
- Selectable- SPDT- 10A @250V AC / 30V DC, resistive OR SSR Drive 12V DC, 50mA
- Process Controllers - Hysteresis
- 0.1-99.9
- Process Controllers - Power Consumption
- 5VA max @230V AC
- Process Controllers - Operating Temperature
- 0 to 50°C (32 to 122°F)
- Process Controllers - Storage Temperature
- -20 to 75°C (-4 to 167°F)
- Process Controllers - Humidity (Non-Condensing)
- 85% Relative Humidity
- Process Controllers - Weight
- 295 grams (.65 lbs)
- Process Controllers - Display Type
- 7 Segment LED Display
- Process Controllers - Digits
- 2 rows of 4 digits
- Process Controllers - Resolution
- 1/0.1 Degree for TC/RTD / Fixed 1 Degree for R and S TC
- Process Controllers - Sampling Time
- 200msec
- Process Controllers - Input Filter (FTC)
- 1 to 99 sec
- Process Controllers - Control Action
- 1) PID Control with Auto Tuning 2) ON-OFF Control
- Process Controllers - PID
- Proportional Band (P): 0-400° Integral Time (I): 0-999 sec Derivative Time (D): 0-200 sec
- Process Controllers - Alarm Mode
- Deviation High/Low, Absolute High/Low, Band, Sensor Break PID330- Full Scale High, Full Scale Low
- Process Controllers - Temperature Unit
- °C / °F
- Process Controllers - Cycle Time
- 0.1 to 100 sec.
- Process Controllers - Manual Reset Value
- -99.9° to 19.9°
- Process Controllers - Set Points
- 2
- Process Controllers - J, K,T / TC INPUTS*
- 0.25% of F.S. ±1°
- Process Controllers - R, S INPUTS*
- 0.5% of F.S. ±2°
- Process Controllers - RTD INPUT
- 0.1% of F.S. ±1°
- Process Controllers - Auxiliary Output
- 2 Selectable- SPST- 5A @230V AC / 30V DC, resistive OR SSR Drive(Voltage Pulse)- 12V DC, 20mA
- Process Controllers - Retransmission
- 4 to 20mA DC, 0-10V DC (100msec. Update Rate)
- Process Controllers - Output 1
- Relay
- Process Controllers - Output 2
- Relay
- Process Controllers - Relay/SSR
- Relay
Datos del producto
- Marca
- Altech
- Número de parte
- PID330-0-0-01-CU
- Línea
- Process Controllers
- Categoría
- Medición y monitoreo
- Precio y entrega
- Por cotización
