PIC152N-B-4-CU

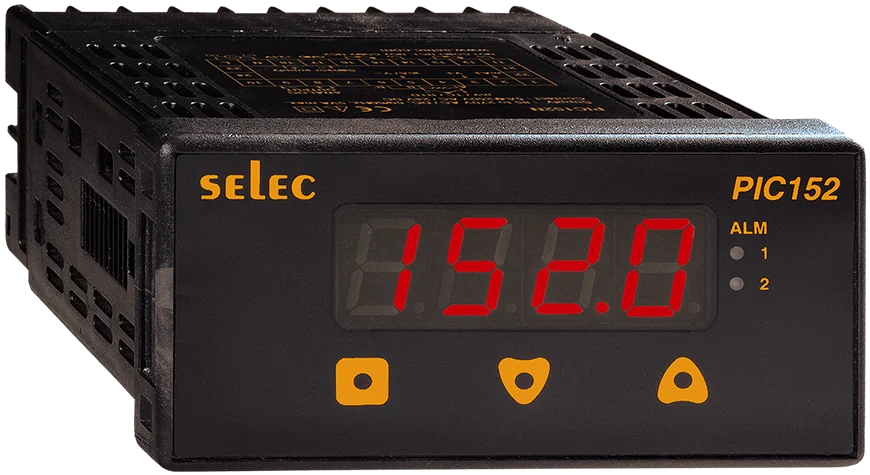

Advanced Process IndicatorPIC152N-B-2-CU - Advanced Process Indicator 7 Segment LED Display Features • 4 Digit 7 Segment LED • TC / RTD / Analog Inputs • °C / °F • 2 Alarm Outputs • 24V DC Sensor Supply • Optional Features Retransmission Output DATA Sheet Link < Product photo may vary depending on part number selection.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Process Controllers - Supply Voltage
- 85-270V AC/DC
- Process Controllers - LED Indication
- LED 1: Alarm On
- Process Contollers - Input Voltage
- 85-270V AC/DC (50/60Hz)
- Process Controllers - Input Measurement
- Thermocouple (J,K,T,R,S) RTD (Pt100) DC Analog Inputs (-5 to 56mV, 0 to 10V, 0/4 to 20mA)
- Process Controllers - Main Output
- SPDT- 5A @ 250V AC/ 24V DC, resistive
- Process Controllers - Power Consumption
- 6VA max @230V AC
- Process Controllers - Operating Temperature
- 0 to 50°C (32 to 122°F)
- Process Controllers - Storage Temperature
- -20 to 75°C (-4 to 167°F)
- Process Controllers - Humidity (Non-Condensing)
- 95% Relative Humidity
- Process Controllers - Weight
- 240 grams (.52lbs)
- Process Controllers - Display Type
- 7 Segment LED Display
- Process Controllers - Digits
- 1 row of 4 digits
- Process Controllers - Resolution
- 1/0.1 Degree for TC/RTD only. Decimal point position selectable 1/0.1/0.01/0.001 for analog input
- Process Controllers - Alarm Mode
- High Alarm / Low Alarm / Ban / Fail output / Fault Diagnosis
- Process Controllers - Temperature Unit
- °C / °F 0.1-99.9°
- Process Controllers - J, K,T / TC INPUTS*
- .25% of Full Scale ±1°
- Process Controllers - R, S INPUTS*
- 0.5% of Full Scale ±2°
- Process Controllers - RTD INPUT
- 0.1% of Full Scale ±1°
- Process Controllers - Auxiliary Output
- Retransmission (Optional) 4 to 20mA DC, 0-10V DC
- Process Controllers - Annunciator
- Programmable
- Process Controllers - ANALOG INPUT
- +/-.5% of Full Scale, +/- 1 digit
- Process Controllers - Rest
- Auto or Latched
Datos del producto
- Marca
- Altech
- Número de parte
- PIC152N-B-4-CU
- Línea
- Process Controllers
- Categoría
- Medición y monitoreo
