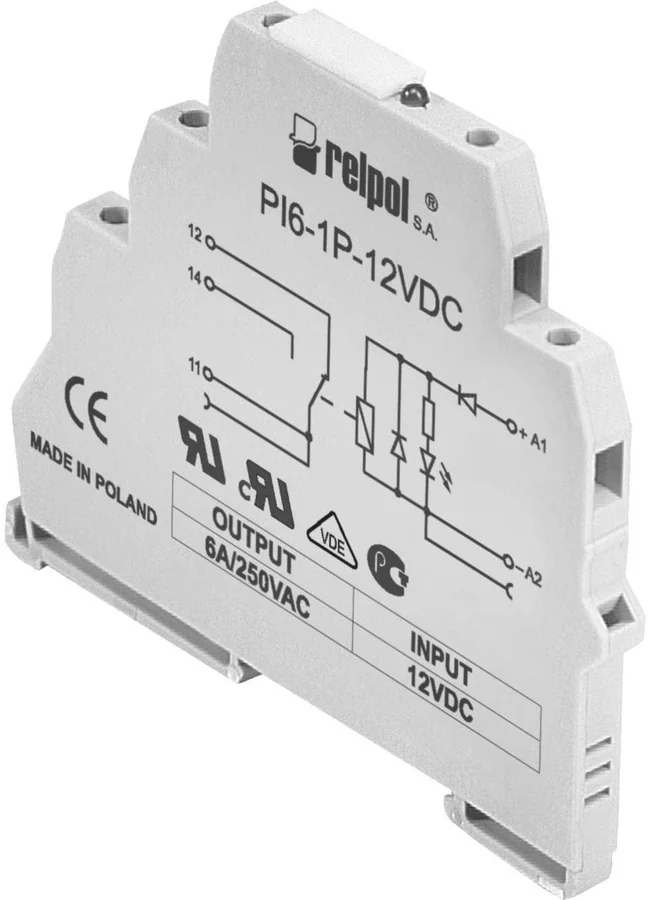

PI6-1P-36VDC
SPDT DC Coil, Subminiature Electromagnetic RelayPI6-1P SPDT DC Coil, Subminiature Electromagnetic Relay Standard Features Width 6.2 mm Interface relays PI6-1P - with SPDT contact output 35 mm rail mount Maybe linked with interconnection strip type ZG20 Equipped in green LED DATA Sheet Link
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Industrial Relays - Number and type of contacts
- SPDT
- Industrial Relays - Contact material
- AgSnO2
- Industrial Relays - Rated / max. switching voltage AC
- 400 V AC / 250 V DC
- Industrial Relays - Min. switching voltage
- 10 V
- Industrial Relays - Rated load (capacity) AC1
- 6 A / 250 V AC
- Industrial Relays - Rated load (capacity) DC1
- 6 A / 24 V DC; 0.15 A / 250 V DC
- Industrial Relays - Min. switching current
- 100 mA
- Industrial Relays - Max. inrush current
- 10 A 20 ms
- Industrial Relays - Rated current
- 6A
- Industrial Relays - Max. breaking capacity AC1
- 1500 VA
- Industrial Relays - Min. breaking capacity
- 1 W
- Industrial Relays - Contact resistance
- ≤ 100 mΩ 100 mA. 24 V
- Industrial Relays - Max. operating frequency at rated load AC1
- 360 cycles/hour
- Industrial Relays - Max. operating frequency - No load
- 72000 cycles/hour
- Industrial Relays - Must release voltage
- AC: ≥ 0.2 Un; DC: ≥ 0.1 Un
- Industrial Relays - Rated power consumption
- DC: 0.3 W; 5...32 V DC at 24 V, AC/DC: 0.3 VA / 0.3 W; 24 V AC/DC and 1.6 VA / 1.6 W; 230 V AC/DC
- Industrial Relays - Insulation rated voltage
- 400 V AC
- Industrial Relays - Rated surge voltage
- 4000 V 1.2 / 50 µs
- Industrial Relays - Overvoltage category
- III
- Industrial Relays - Insulation pollution degree
- 3
- Industrial Relays - Dielectric strength contact clearance
- 1000 V AC 50/60 Hz. 1 min.. type of clearance: micro-disconnection
- Industrial Relays - Contact - Coil distance Clearance
- ≥ 6 mm
- Industrial Relays - Contact - Coil distance Creepage
- ≥ 8 mm
- Industrial Relays - Operating time (typical value)
- AC: 7 ms; DC: 6 ms
- Industrial Relays - Release time (typical value)
- AC: 15 ms; DC: 10 ms
- Industrial Relays - Electrical life- resistive AC1
- greater than 0.6 x 10^5; 6 A. 250 V AC
- Industrial Relays - Electrical life- resistive DC1
- 10^5; 6 A. 30 V DC
- Industrial Relays - Electrical life cos φ equals 0.4
- greater than 2 x 10^5; 2 A. 250 V AC
- Industrial Relays - Mechanical life (cycles)
- greater than 2 x 10⁷
- Industrial Relays - Dimensions (L x W x H)
- 93.8 x 6.2 x 80 mm
- Industrial Relays - Weight
- 40 g
- Industrial Relays - Storage Temperature
- -40...+70 °C
- Industrial Relays - Operating Temperature
- AC: -40...+55 °C; DC (12. 24 V): -40...+60 °C
- Industrial Relays - Protection Category
- IP 20 PN-EN 60529
- Industrial Relays - Environmental Protection
- RTI PN-EN 116000-3
- Industrial Relays - Rated input voltage Un
- 36 V DC
- Industrial Relays - Power of input circuit
- 0.7 W
- Industrial Relays - Input voltage range in V min. (at 20°C)
- 28.8
- Industrial Relays - Input voltage range in V max. (at 55°C)
- 40
- Industrial Relays - Dielectric strength Input - output
- 6000 V 1.2 / 50 μs
- Industrial Relays - Dielectric strength Input - output (type of insulation: reinforced)
- 4000 V AC 50/60 Hz. 1 min..
- Industrial Relays - Dielectric strength Mass- input. output
- 2500 V AC 50/60 Hz. 1 min.
- Industrial Relays - Relay Type
- PI6-1P
Datos del producto
- Marca
- Altech
- Número de parte
- PI6-1P-36VDC
- Categoría
- Relevadores de estado sólido
- Precio y entrega
- Por cotización
