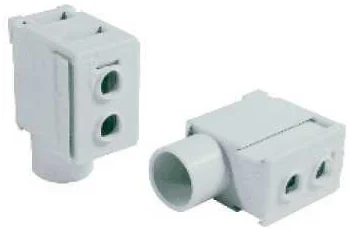

P50UB

Modular Direct Power FeedElectrical rating: 115A/600V AC/DC Wire Ranges: 14-1 AWG Cu Wire Temperature Rating: 75°C Required Torque: Cable Side: 3.5Nm/31 lb. in. (14-6AWG) Cable Side: 4Nm/35.4 lb. in. (4-1AWG) Busbar Side: 2.5Nm/22 lb. in. Material of Lug: Brass Insulation Material: Polyamide For use with: UL1077/508 18 and 25sqmm 1, 2, 3 phase busbars
