Included with TU or BD Series Tunnel Sensors

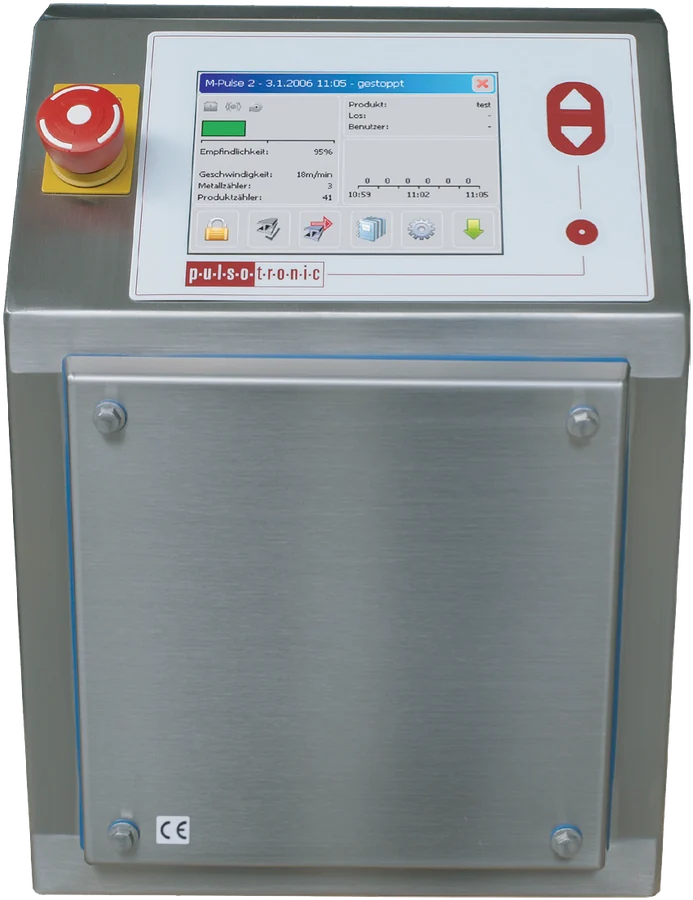

M-Pulse Control UnitIncluded with TU or BD Series Tunnel Sensors - M-Pulse Control Unit The Control Unit automatically controls and adjusts the connected sensor. This allows a maintenance-free operation. A32-Bit Processor System analyses the sensor data in realtime and filters out product effects and interferences. The device can be monitored via several In- and Outputs. Many additional Interfaces allow integration into other systems and machines.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Metal Detection - Switching State
- LED
- Metal Detection - Operating Temp.
- -10°C..+60°C
- Metal Detection - Protection Class
- IP65
- Metal Detection - Housing Material
- Stainless Steel
- Metal Detection - Relay Output
- 2 SPDT; 250V, 1A
- Metal Detection - Storage Temperature
- 0°C..+50°C
- Metal Detection - Power Consumption
- max. 40W
- Metal Detection - Electrical Connection
- 3m connection cable (L1, N, Ground)
- Metal Detection - Digital Inputs
- 4
- Metal Detection - Digital Input Types
- Optical isolated; VL equals -5..1.5V, VH equals 6..50V; (Multifunction-Key, Ejector Guard)
- Metal Detection - Digital Outputs
- 6
- Metal Detection - Digital Output Types
- PNP; max. 200mA (Transducer, Ejector, Device State)
- Metal Detection - Sensor Transmitter
- 50 Ohm; Overload/ Short Circuit Proof (50..650kHz)
- Metal Detection - Sensor Receiver
- HDC-IQ - Receiver with Sensor-Readjustment
- Metal Detection - Serial Interfaces
- 2 x RS232
- Metal Detection - Voltage Output
- 24 VDC, Overload/ Short Circuit Proof; max. 2.5W for internal Components
- Metal Detection - Dimensions
- 250x330x160mm (9.8"x13.0"x6.3")
- Metal Detection - Weight
- 4600g (10.1lb)
- Metal Detection - Display
- 320x240 TFT (65536 colors) Touchscreen
- Metal Detection - LAN
- RJ45, Ethernet, 10/100 Mbit
