Included with AMD-RG Series

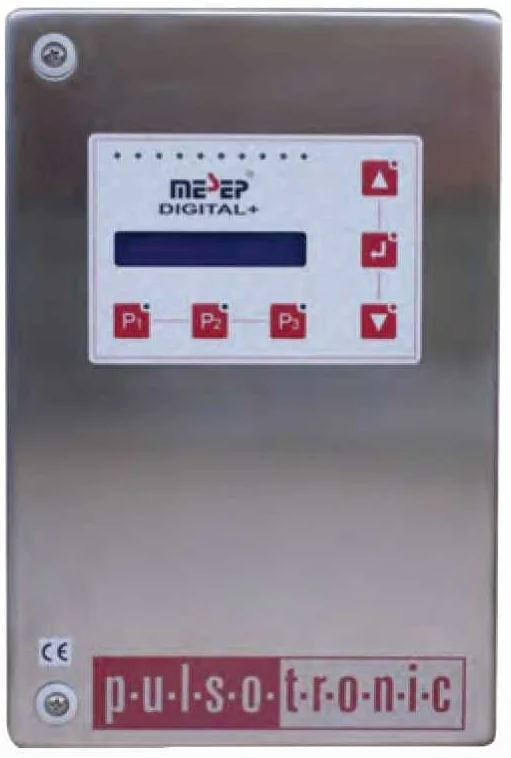

Control Unit for Ultra-High Sensitivity Ring SensorIncluded with AMD-RG Series - Control Unit for Ultra-High Sensitivity Ring Sensor The Control Unit automatically controls and adjusts the connected sensor. This allows a maintenance-free operation. A32-Bit Processor System analysis the sensor data in realtime and filters out product effects and interferences. The device can be monitored via several In- and Outputs.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Metal Detection - Switching State
- LED
- Metal Detection - Operating Temp.
- -10°C..+60°C
- Metal Detection - Protection Class
- IP65
- Metal Detection - Housing Material
- Stainless Steel
- Metal Detection - Supply Voltage
- 85-265 VAC, 50/60Hz
- Metal Detection - Relay Output
- 2 SPDT; 250V, 1A
- Metal Detection - Storage Temperature
- 0°C..+50°C
- Metal Detection - Power Consumption
- max. 40W
- Metal Detection - Digital Inputs
- 4
- Metal Detection - Digital Input Types
- Optical isolated; VL equals -5..1.5V, VH equals 6..50V; (Multifunction-Key, Ejector Guard)
- Metal Detection - Digital Outputs
- 6
- Metal Detection - Digital Output Types
- PNP; max. 200mA (Transducer, Ejector, Device State)
- Metal Detection - Sensor Transmitter
- 50 Ohm; Overload/ Short Circuit Proof (50..650kHz)
- Metal Detection - Sensor Receiver
- HDC-IQ - Receiver with Sensor-Readjustment
- Metal Detection - Serial Interfaces
- 2
- Metal Detection - Voltage Output
- 24 VDC, Overload/ Short Circuit Proof; max. 2.5W for internal Components
- Metal Detection - Dimensions
- 200x300x80mm (7.9"x11.8"x3.2")
- Metal Detection - Weight
- 3000g (6.6lb)
