IRPLACD05

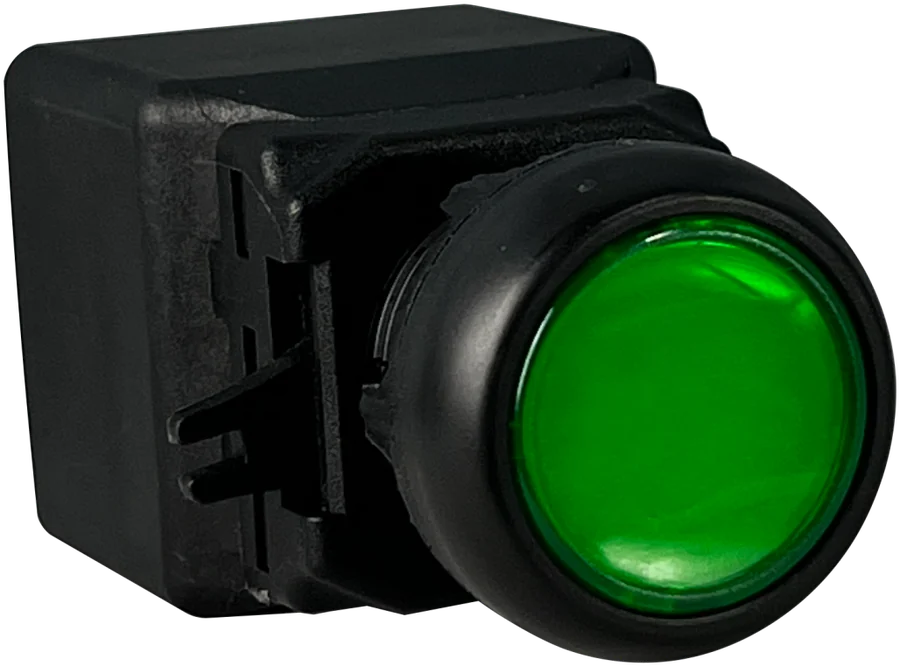

Botón Inalámbrico 22mm, Verde, Alim. por bateriasIRPLACD05 - Wireless Push Button (Transmitter) Actuator Our wireless push button with RF receiver unit is designed for seamless remote control applications, powered by a 24V DC input. The push button is crafted from high-grade, UL-approved, flame-retardant polymer engineering material, ensuring both durability and safety. Operating within the 863 to 870 MHz frequency band, ensuring safe and interference-free operation It provides robust wireless communications for guaranteed seamless operation.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Color
- Red, Yellow, Green, Blue, Orange
- Marking
- Label on remote (Power rating, ID etc.)
- Push Button Input Current
- 150mA
- Push Button Operating Temperature
- -10 ~ 60 °C
- Push Button Storage Temperature
- -10 ~ 65 °C
- Push Button Air Humidity
- 95% relative humidity at Ambient temperature
- Compliance
- RoHS
- Push Button Operating Range
- 100m, +/-10m
- Push Button Supply Voltage
- 3V DC
- Continuous Operation Test
- Comply
- IP Test
- IP20 Comply
- Battery Type
- Alkaline Battery Model: 23A
- Battery Voltage
- 12V
- Battery Mounting
- Removable
- Charging Time
- Non-Rechargeable
- Use Time Standby
- 3 Months
- Use Time (Transmitting)
- 24 Hrs (Continuous)
- Signal Frequency Band
- 863 to 870MHz
- Operating Modes
- Push to On, Push to OFF & Pulse Mode Configured with receiver
- Charger Type
- ------
- IP test (If mounted on panel)
- IP54 Comply
Datos del producto
- Marca
- Altech
- Número de parte
- IRPLACD05
- Línea
- Push Buttons
- Categoría
- Botones y señalización
- Precio y entrega
- Por cotización
