IRFLZDD03

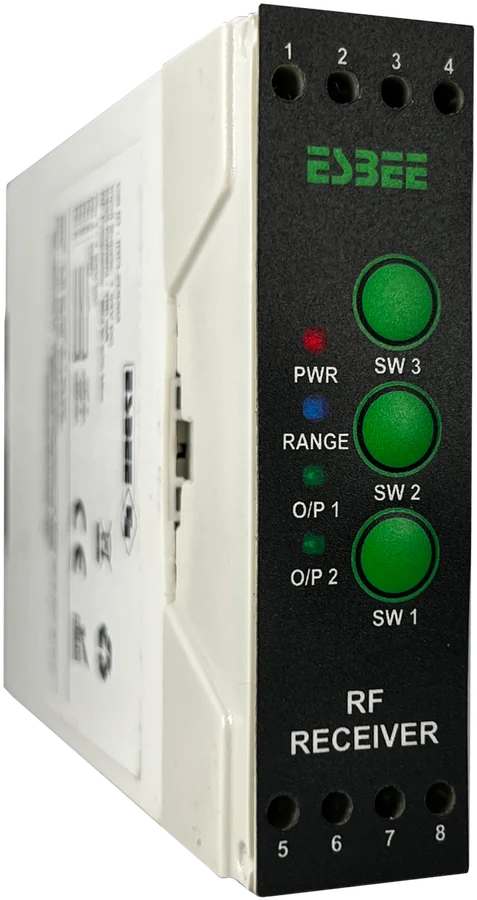

Mòdulo receptor, 2NA 15-30V CD, Riel DINIRFLZDD03 - RF Reciever Quick and Easy Installation Excellent Mechanical Connection With Various Actuators Replaceable Batteries Rugged and Waterproof With IP 54 For Transmitter and IP 20 For Receiver Reliable and Secure Over the Air Configuration Datasheet
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Rated Voltage
- 24V DC
- Color
- Gray
- Push Button Input Current
- 250mA
- Push Button Mounting Details
- DIN Rail
- Push Button Operating Temperature
- -10 ~ 60 °C
- Push Button Storage Temperature
- -10 ~ 65 °C
- Push Button Air Humidity
- 95% relative humidity at Ambient temperature
- Compliance
- RoHS
- Push Button Wattage
- 6W
- RF Receiver Outer Dimensions
- H75×L110×W24mm
- Relay Contact Type
- Potential free NO contact
- LED Indications
- Power: Red Signal: Blue O/P 1: Green O/P 2: Green
- Push Button Operating Range
- 100m, +/-10m
- RF Receiver Input
- 5.08mm Pitch Connector, PIN 1 & 2
- RF Receiver Output
- O/P1: 5.08mm Pitch Connector, PIN 5(NO1) & 6(POLE1) O/P1: 5.08mm Pitch Connector, PIN 7(NO2) & 8(POLE2)
- Relay Operating Mode
- 1. Latch to push-release to push. 2. 1 Sec Pulse on push. 3. 300ms Pulse on push. Modes are settable with keys on receiver.
- Relay Contact Rating
- 5A
- No. of Relay Contact
- 2 NO Contacts (Max)
- Signal Frequency Band
- 863 to 870MHz
- Push Button Supply Voltage
- 15–30V DC
- IP Test
- IP20 Comply
- RF Receiver Marking
- Label on remote (Power rating, ID etc.)
Datos del producto
- Marca
- Altech
- Número de parte
- IRFLZDD03
- Línea
- Push Buttons
- Categoría
- Botones y señalización
- Precio y entrega
- Por cotización
