GZMB2

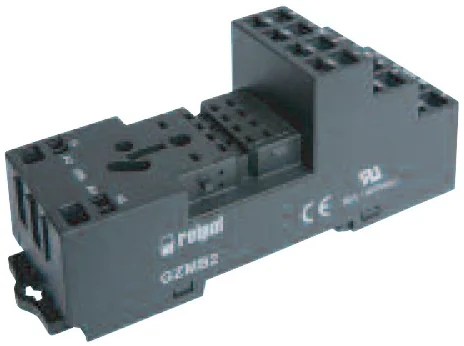

Plug-In Relay Socket for R2 SeriesGZMB2 Plug-In Relay Socket for R2 Series Standard Features Plug-in relay socket designed for R-series industrial relays Spring terminal connections for secure and reliable wiring Suitable for 35 mm DIN rail mounting applications Rated up to 10 A, 300 V AC Two-pole configuration Accepts wire sizes from 24–16 AWG (0.2–1.5 mm²) DATA Sheet Link
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Industrial Relays - Rated Voltage
- 300 V AC
- Industrial Relays - Compatible Relay Series
- R2
- Industrial Relays - Terminal Type
- Spring terminals
- Industrial Relays - Mounting Type
- 35 mm DIN Rail Mount
- Industrial Relays - DIN Rail Standard
- PN-EN 60715
- Industrial Relays - Dimensions (accessory)
- 95 × 31 × 42.5 (80) mm
- Industrial Relays - Number of Poles
- 2
- Industrial Relays - Contact Rating
- 10A
- Industrial Relays - Max. Cable Cross Section
- 1 × 0.2–1.5 mm²
- Industrial Relays - Wire Size (AWG)
- 24–16 AWG
- Industrial Relays - Stripping Length
- 9–11 mm
Datos del producto
- Marca
- Altech
- Número de parte
- GZMB2
- Categoría
- Relevadores de estado sólido
- Precio y entrega
- Por cotización
