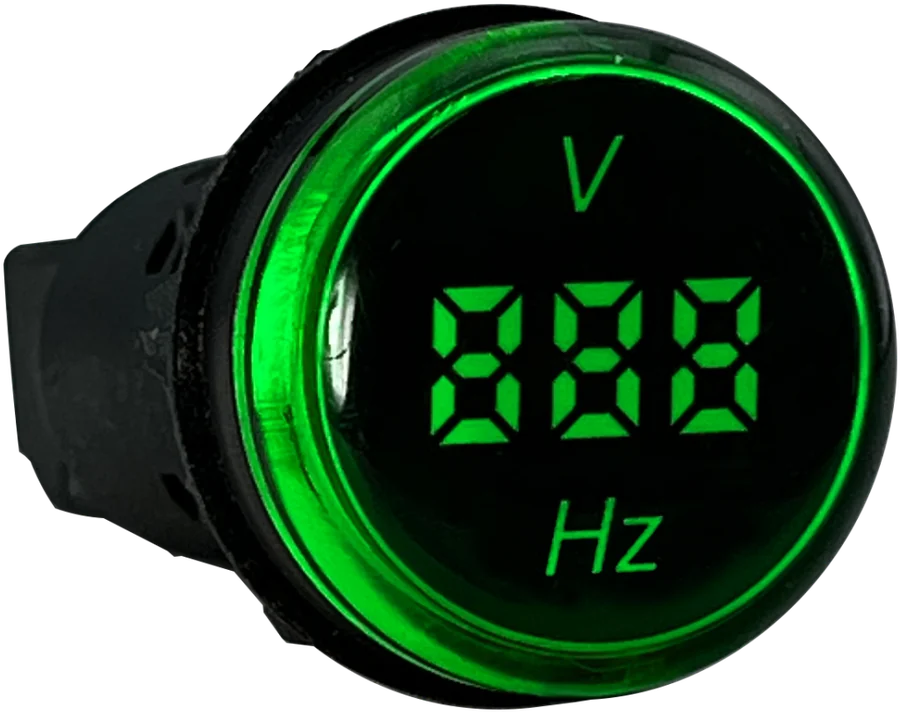

EFAG240A01
Frequency Indicator 240VACFrequency Indicator 240VDC Covers a wide range from 10 Hz to 90 Hz for stable system performance. Works with 240V AC and 110V AC, ensuring compatibility across industries. Essential for industrial automation, electric vehicle chargers, marine & aviation, production lines, and testing labs to ensure operational stability. Datasheet *Color of product images may not be 100% true to actual product color.*
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Push Button Style
- Frequency Indicator 240VAC
- Push Button Rated Supply Voltage
- 240 V AC / 110 V AC
- Push Button Operating Supply Voltage
- 70 V AC - 270 V AC / 80 V AC - 150 V AC / 10 V DC - 26 V DC
- Push Button Input Current
- ◁ 50 mA
- Push Button Input Wattage
- 0.6 - 0.9 W / ❮ 1 W
- Push Button Tolerance / Accuracy
- ±1%
- Push Button Surge Test
- 2 KV AS PER IEC 61000-4-5
- Push Button HV Rating
- 2 KV AS PER IEC 60243
- Push Button EFT
- 2KV
- Push Button Rated Insulation Voltage
- 500 V AC @ 1MΩ
- Push Button Display Type
- 7 Segment 3 digit
- Push Button Electrical Life
- 20K under normal operating condition
- Push Button Dimensions
- 63 x 28 mm
- Push Button Weight
- 25 g
- Degree of Protection
- Above Panel: IP65; For Terminals: IP20
- Push Button Mounting Details
- Mounting on Panel, 22.5 Dia Hole
- Push Button Connectors
- 2 Pin - screw terminal (◁0.75 to 1 sq.mm wire)
- Push Button Screw Tightning Torque
- 0.8Nm
- Push Button Housing Color
- Black
- Push Button Illuminating Lens Color
- Green
- Push Button Operating Temperature
- -20°C TO 60°C
- Push Button Storage Temperature
- -30°C TO 65°C
- Push Button Air Humidity
- 10% - 95%
- Compliance
- RoHS, CE
- Push Button Current Indication Range
- 0A to 100A with CT for single phase / 0A to 12A
- Push Button Tolerance Scope
- ± 1 A
- Push Button Temperature Indication Range
- -50°C TO 80°C
- Push Button Sensor Wire Length
- 1 meter std
- Push Button Frequency Sensing Range
- 10 Hz to 90 Hz
Datos del producto
- Marca
- Altech
- Número de parte
- EFAG240A01
- Línea
- Push Buttons
- Categoría
- Botones y señalización
- Precio y entrega
- Por cotización
