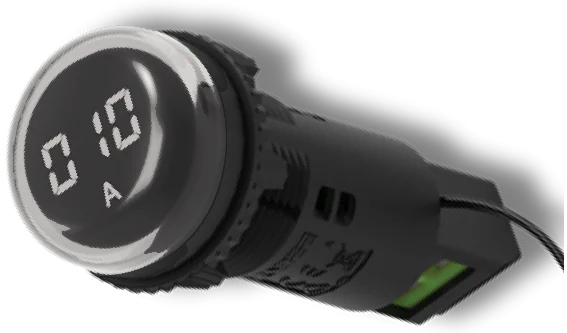

ECAC240A01
Current Indicator 240VACCurrent Indicator 240VDC Supports 0A to 100A (with CT) or 0A to 12A for various electrical applications. Helps detect abnormal current levels to prevent equipment damage. Used in industrial motors, pumps & compressors, HVAC systems, elevators, and manufacturing plants to optimize energy efficiency and safety Datasheet *Color of product images may not be 100% true to actual product color.*
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Push Button Style
- Current Indicator 240VAC
- Push Button Rated Supply Voltage
- 240 V AC / 110 V AC / 24 V DC
- Push Button Operating Supply Voltage
- 70 V AC - 270 V AC / 80 V AC - 150 V AC / 10 V DC - 26 V DC
- Push Button Input Current
- ◁ 50 mA
- Push Button Input Wattage
- 0.6 - 0.9 W / ❮ 1 W
- Push Button Frequency
- 50/60 Hz
- Push Button Tolerance / Accuracy
- ±1%
- Push Button Surge Test
- 2 KV AS PER IEC 61000-4-5
- Push Button HV Rating
- 2 KV AS PER IEC 60243
- Push Button EFT
- 2KV
- Push Button Rated Insulation Voltage
- 500 V AC @ 1MΩ
- Push Button Display Type
- 7 Segment 3 digit
- Push Button Electrical Life
- 20K under normal operating condition
- Push Button Dimensions
- 63 x 28 mm
- Push Button Weight
- 25 g
- Degree of Protection
- Above Panel: IP65; For Terminals: IP20
- Push Button Mounting Details
- Mounting on Panel, 22.5 Dia Hole
- Push Button Connectors
- 2 Pin - screw terminal (◁0.75 to 1 sq.mm wire)
- Push Button Screw Tightning Torque
- 0.8Nm
- Push Button Housing Color
- Black
- Push Button Illuminating Lens Color
- Clear
- Push Button Operating Temperature
- -20°C TO 60°C
- Push Button Storage Temperature
- -30°C TO 65°C
- Push Button Air Humidity
- 10% - 95%
- Compliance
- RoHS, CE
- Push Button Current Indication Range
- 0A to 100A with CT for single phase / 0A to 12A
Datos del producto
- Marca
- Altech
- Número de parte
- ECAC240A01
- Línea
- Push Buttons
- Categoría
- Botones y señalización
- Precio y entrega
- Por cotización
