CH403-1-NTC-CU

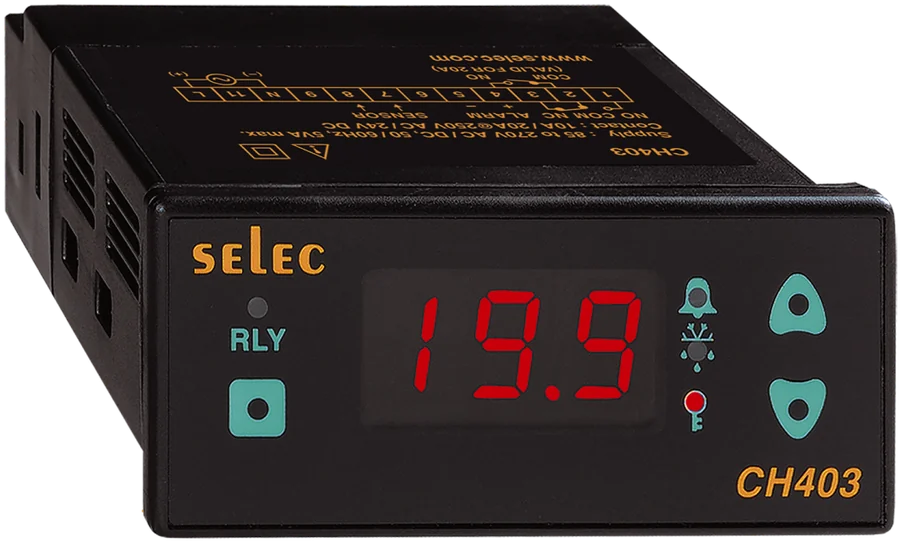

Cooling ControllerCH403-1-NTC-CU - Cooling Controller 7 Segment LED Display Features • 3 Digit 7, Segment LED • °C / °F • Defrost Management • High and Low Temperature Alarm • Up to 20A Relay Output • Compact Size • Easy to use • Size: 36mm x 72mm DATA Sheet Link < Product photo may vary depending on part number selection.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Process Controllers - Supply Voltage
- 85-270V AC/DC
- Process Controllers - LED Indication
- Set point lock / Defrost / Relay ON / Alarm
- Process Contollers - Input Voltage
- 85-270V AC/DC (50/60Hz)
- Process Controllers - Input Measurement
- NTC probe
- Process Controllers - Main Output
- SPDT - 10A @ 230V AC, resistive Optional- SPST - 20A @ 230V AC, resistive (no alarm)
- Process Controllers - Hysteresis
- 0.1-9.9°
- Process Controllers - Power Consumption
- 5VA max @230V AC
- Process Controllers - Operating Temperature
- 0 to 50°C (32 to 122°F)
- Process Controllers - Storage Temperature
- -20 to 75°C (-4 to 167°F)
- Process Controllers - Humidity (Non-Condensing)
- 95% Relative Humidity
- Process Controllers - Weight
- 110 grams (.242 lbs)
- Process Controllers - Display Type
- 7 Segment LED Display
- Process Controllers - Digits
- 1 row of 3 digits
- Process Controllers - Resolution
- 1/0.1 Degree for NTC
- Process Controllers - Control Output
- 10A Relay
- Process Controllers - Control Action
- On-Off
- Process Controllers - Alarm Mode
- High alarm, Low Alarm
- Process Controllers - Temperature Unit
- °C / °F
- Process Controllers - Set Points
- 1
- Process Controllers - Thermistor Range
- -40 to 100° C
- Process Controllers - Optional Alarm Output
- SPST - 5A @ 230V AC, resistive OR SSR Drive - 12V DC, 10mA
- Process Controllers - Modes
- Heat and Cool
- Process Controllers - Defrost Time / Frequency
- Programmable from 0-99min , 0-99 sec/min/hr
- Process Controllers - Restart Time Delay
- Adjustable 0-99min
- Process Controllers - NTC Input
- 0.25% of Full Scale ±1°C
- Process Controllers - Alarm Output
- 12V DC SSR
Datos del producto
- Marca
- Altech
- Número de parte
- CH403-1-NTC-CU
- Línea
- Process Controllers
- Categoría
- Medición y monitoreo
