CBCT-210-1

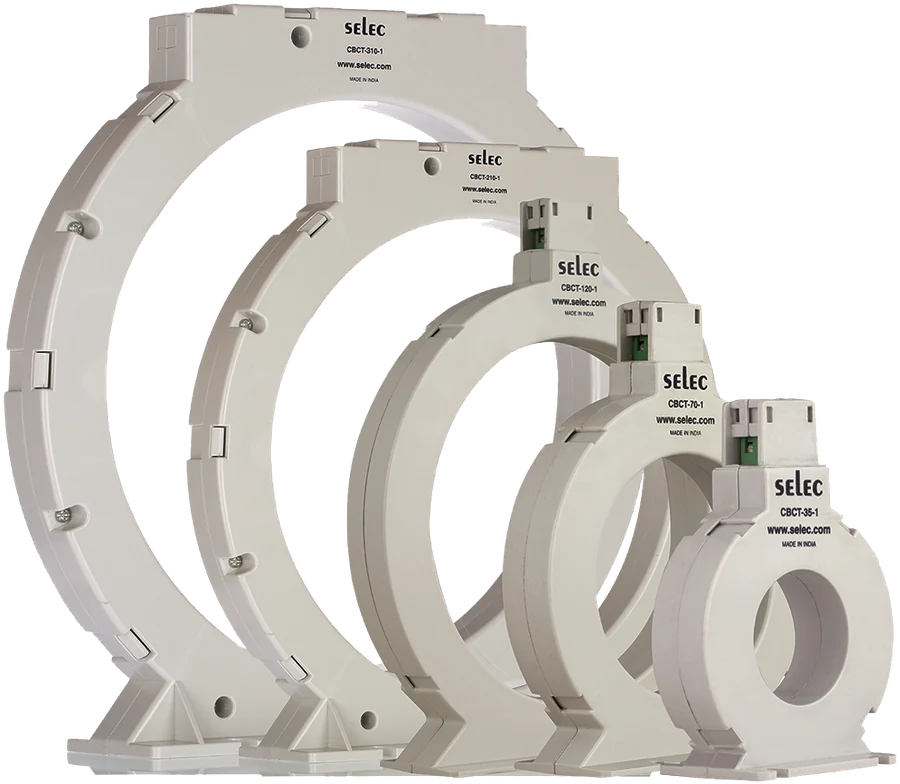

Transformador de corriente p/ 900ELR,210mm diametro internoCBCT-210-1 - Closed Toroid for Current Leakage Protection Features • Compact • Reliable and Accurate • Flexible Design DATA Sheet Link < Product photo may vary depending on part number selection.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Process Controllers - Operating Temperature
- 0 to 55°C (32 to 131°F)
- Process Controllers - Storage Temperature
- -20 to 75°C (-4 to 167°F)
- Process Controllers - Humidity (Non-Condensing)
- 95% Relative Humidity
- Process Controllers - Current Transformer Type
- Closed Toroid
- Process Controllers - Turns Ratio
- 1000:01:00 1000:1
- Process Controllers - Rated Current
- 30A
- Process Controllers - CBCT-35-1
- 2.5mm
- Process Controllers - CBCT-70-1
- 2.5mm
- Process Controllers - CBCT-120-1
- 2.5mm
- Process Controllers - CBCT-210-1
- 2.5mm
- Process Controllers - CBCT-310-1
- 2.5mm
- Process Controllers - Wire Size (max)
- 0.2-1.5mm² (AWG: 24-14)
- Process Controllers - Screw Tightening Torque
- 0.5 N-M
- Process Controllers - Inner Diameter
- 210mm
Datos del producto
- Marca
- Altech
- Número de parte
- CBCT-210-1
- Línea
- Process Controllers
- Categoría
- Medición y monitoreo
- Precio y entrega
- Por cotización
