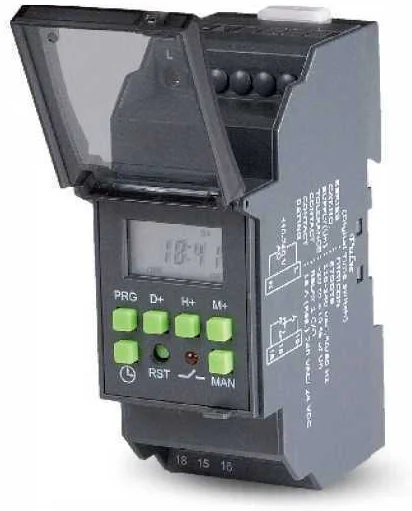

ATS-P24
Digital Time Switch, Pulse VersionDigital Time Switch, Pulse Version Altech's ATS Series of Digital Time Switches comprises 6 models featuring Precise Time Programming for Daily/ Weekly (ATS-C) or Pulse (ATS-P) switching. An LCD displays shows current Timing and Function information. The Pulse version, ATS-P series, allows pulse operations to be scheduled with duration 1-59s. Application Examples are scheduling Sirens, bells, etc.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Digital Timers - Supply Voltage
- 24VDC
- Digital Timers - Power Consumption
- 4 VA max.
- Digital Timers - Output Contact Rating
- 16A (NO), SA (NC) @ 240VAC/ 24VDC (resistive), 6A@ 250VAC, cos([) equals 0.6 (inductive)
- Digital Timers - Electrical Life
- 30,000 switching cycles
- Digital Timers - AC-15 Rating
- 250VAC/ 2A, cos equals0.6, 85°C
- Digital Timers - DC-13 Rating
- Rated Voltage (Ue): 24VDC, Rated Current (le): 2.0A
- Digital Timers - Operating Temperature
- -10°C - 55°C (14°F - 131°F)
- Digital Timers - Storage Temperature
- -10°C - 60°C (14°F - 140°F)
- Digital Timers - Weight
- 110g (0.24Ib.)
- Digital Timers - Protection
- IP40 (Enclosure), IP20 (Terminals)
- Digital Timers - Torque
- 0.54 Nm (3.5Ib.in.), M2.5 screw
- Digital Timers - Terminal Wire Size
- 0.2-3.3mm2 (24-12AWG)
- Digital Timers - Output Configuration
- 1 x SPOT (C/O)
- Digital Timers - Housing
- UL94-V0
- Digital Timers - Programs
- 16 Pulse Programs
- Digital Timers - Minimum Switching Time
- 1s
- Digital Timers - Programmable Pulse duration
- 1-59s
- Digital Timers - Operating Mode Auto
- Program On
- Digital Timers - Operating Mode On
- Continuous ON
- Digital Timers - Operating Mode Off
- Continuous OFF
- Digital Timers - Display
- 3 Line Text LCD
- Digital Timers - Clock Resolution
- 1 minute
- Digital Timers - Clock Mode
- 12h (AM/ PM) or 24h
- Digital Timers - Clock Accuracy
- +/- 2s above operating temperature
- Digital Timers - LED Indicator
- ON: relay activated, OFF: relay deactivated
Datos del producto
- Marca
- Altech
- Número de parte
- ATS-P24
- Línea
- Programmable Panel-Mount Digital Multi-Timer
- Categoría
- Medición y monitoreo
- Precio y entrega
- Por cotización
